VISHAYDatasheet (PDF)

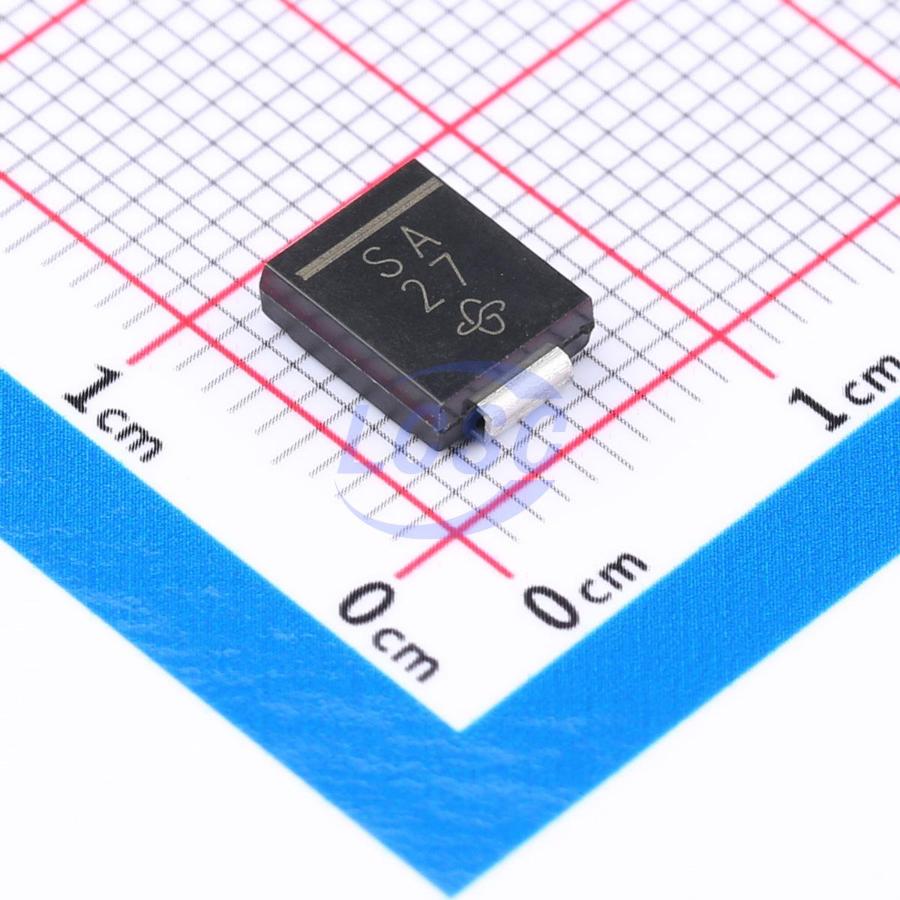

S3A-E3/57T
Diode 1 Independent 50V 3A Surface Mount DO-214AB
DO-214ABROHS3 CompliantActive
DIODE STANDARD 50V 3A DO-214AB
- Manufacturer
- VISHAY
- Manufacturer part #
- S3A-E3/57T
- Store part #
- C5342959
- Package / case
- DO-214AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,665 in stock
#C5342959
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.25 | ₹156.25 |
| 50+ | ₹24.81 | ₹1,240.50 |
| 150+ | ₹22.05 | ₹3,307.50 |
| 850+ | ₹18.60 | ₹15,810.00 |
| 2,550+ | ₹17.07 | ₹43,528.50 |
| 5,100+ | ₹16.15 | ₹82,365.00 |
5 × ₹31.25
₹156.25
excl. GST
₹184.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 850 per reel
S3A-E3/57T
₹156.25 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 1.15V@2.5A
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 850 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.38 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S3B-E3/57T#C142582VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 5 | ₹58.49 · 5 in stock | View |
| S5A-E3/57T#C17184725VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 40 | ₹49.44 · 40 in stock | View | |
 | S5D-E3/9AT#C17563407VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 206 | ₹135.82 · 206 in stock | View |
 | S3GHE3_A/I#C2981055VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 1,276 | ₹35.89 · 1,276 in stock | View |
 | S3G-E3/9AT#C3014149VISHAY · DO-214AB | VISHAY | DO-214AB | 105 | ₹28.63 · 105 in stock | View |
