DIODESDatasheet (PDF)

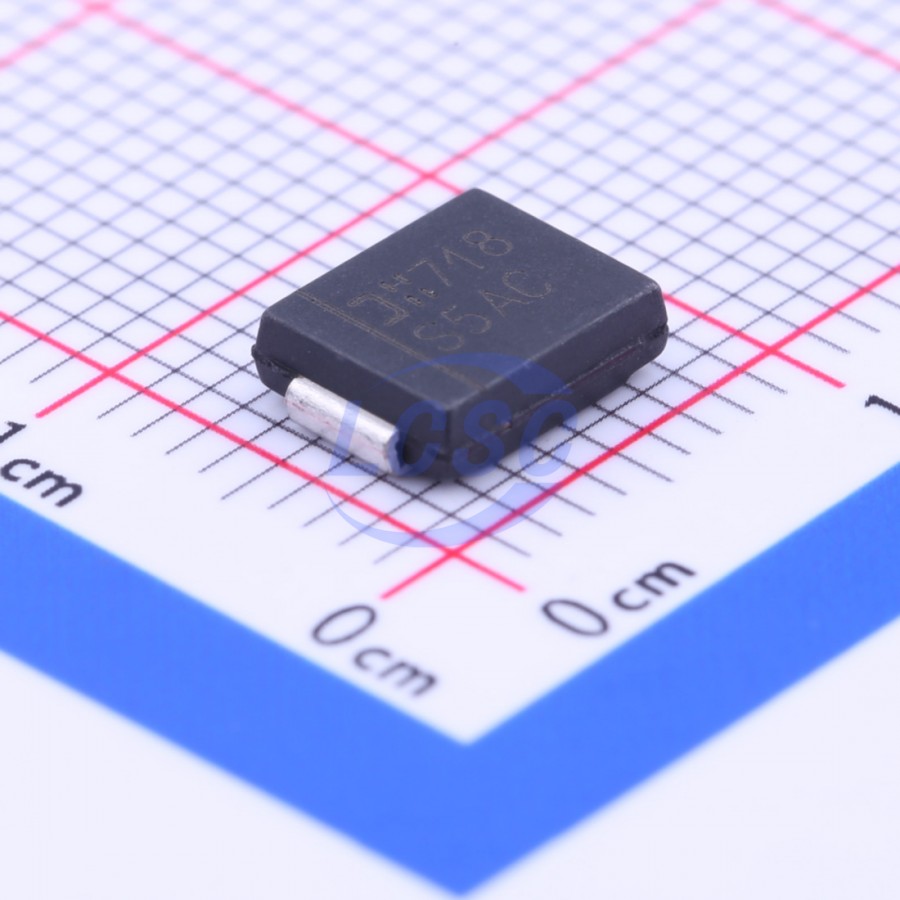

S5AC-13-F
50V 1 Independent 1.15V@5A 5A SMC(DO-214AB) Single Diodes RoHS
SMC(DO-214AB)ROHS CompliantActive
Voltage: 50V Current: 5A
- Manufacturer
- DIODES
- Manufacturer part #
- S5AC-13-F
- Store part #
- C155383
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
895 in stock
#C155383
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.04 | ₹270.20 |
| 50+ | ₹43.38 | ₹2,169.00 |
| 150+ | ₹38.82 | ₹5,823.00 |
| 500+ | ₹33.13 | ₹16,565.00 |
| 3,000+ | ₹30.59 | ₹91,770.00 |
| 6,000+ | ₹29.07 | ₹1,74,420.00 |
5 × ₹54.04
₹270.20
excl. GST
₹318.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S5AC-13-F
₹270.20 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@5A
- Reverse Leakage Current (Ir)
- 10uA@50V
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 100A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5BC-13-F#C155211DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 1,005 | ₹53.05 · 1,005 in stock | View |
 | S5DC-13-F#C211427DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 1,020 | ₹47.55 · 1,020 in stock | View |
| S5A-E3/57T#C17184725VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 40 | ₹49.44 · 40 in stock | View | |
 | S5B-E3/57T#C222533VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 1 | ₹64.02 · 1 in stock | View |
 | S5D-E3/9AT#C17563407VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 206 | ₹135.82 · 206 in stock | View |
