DIODESDatasheet (PDF)

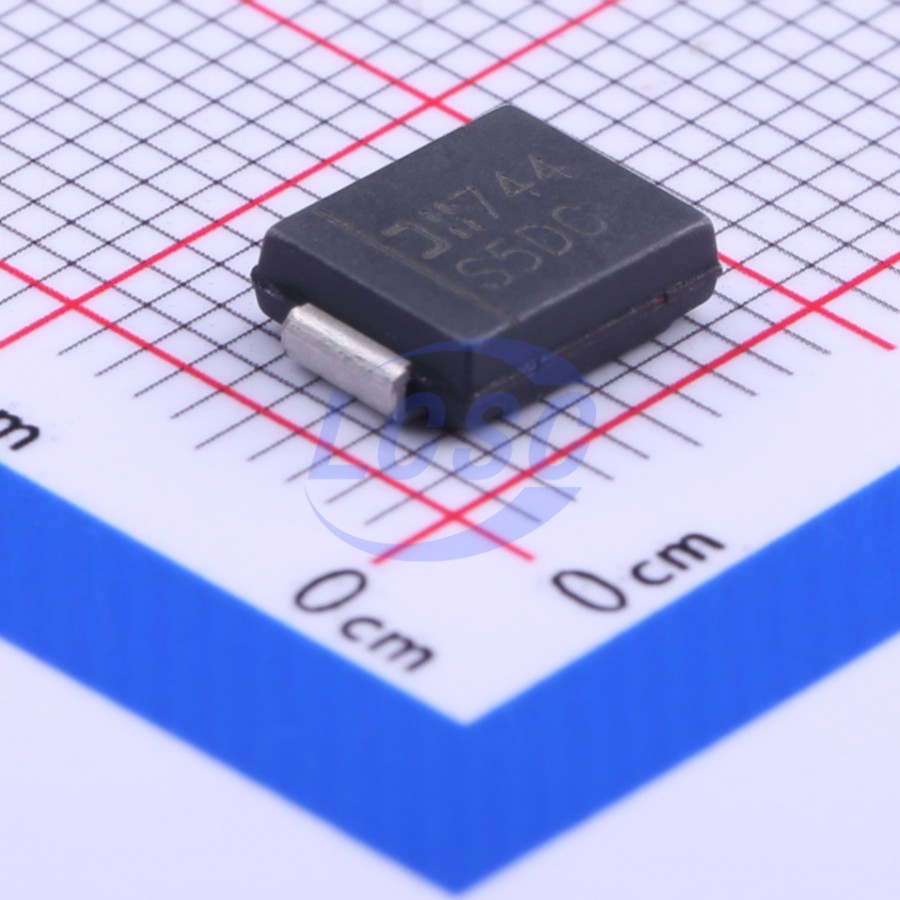

S5DC-13-F
200V 1 Independent 1.15V@5A 5A SMC(DO-214AB) Single Diodes RoHS
SMC(DO-214AB)ROHS3 CompliantActive
Voltage: 200V Current: 5A
- Manufacturer
- DIODES
- Manufacturer part #
- S5DC-13-F
- Store part #
- C211427
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,020 in stock
#C211427
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.55 | ₹237.75 |
| 50+ | ₹37.08 | ₹1,854.00 |
| 150+ | ₹32.61 | ₹4,891.50 |
| 500+ | ₹27.02 | ₹13,510.00 |
| 3,000+ | ₹24.53 | ₹73,590.00 |
| 6,000+ | ₹23.03 | ₹1,38,180.00 |
5 × ₹47.55
₹237.75
excl. GST
₹280.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S5DC-13-F
₹237.75 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@5A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 100A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5GC-13-F#C211400DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 870 | ₹37.39 · 870 in stock | View |
 | S5JC-13-F#C155268DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 9,145 | ₹38.09 · 9,145 in stock | View |
 | S5KC-13-F#C460740DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | On request | ₹49.90 · 0 in stock | View |
 | S5D-E3/9AT#C17563407VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 206 | ₹135.82 · 206 in stock | View |
 | S5D-E3/57T#C5224086VISHAY · DO-214AB | VISHAY | DO-214AB | 47 | ₹110.70 · 47 in stock | View |
