DIODESDatasheet (PDF)

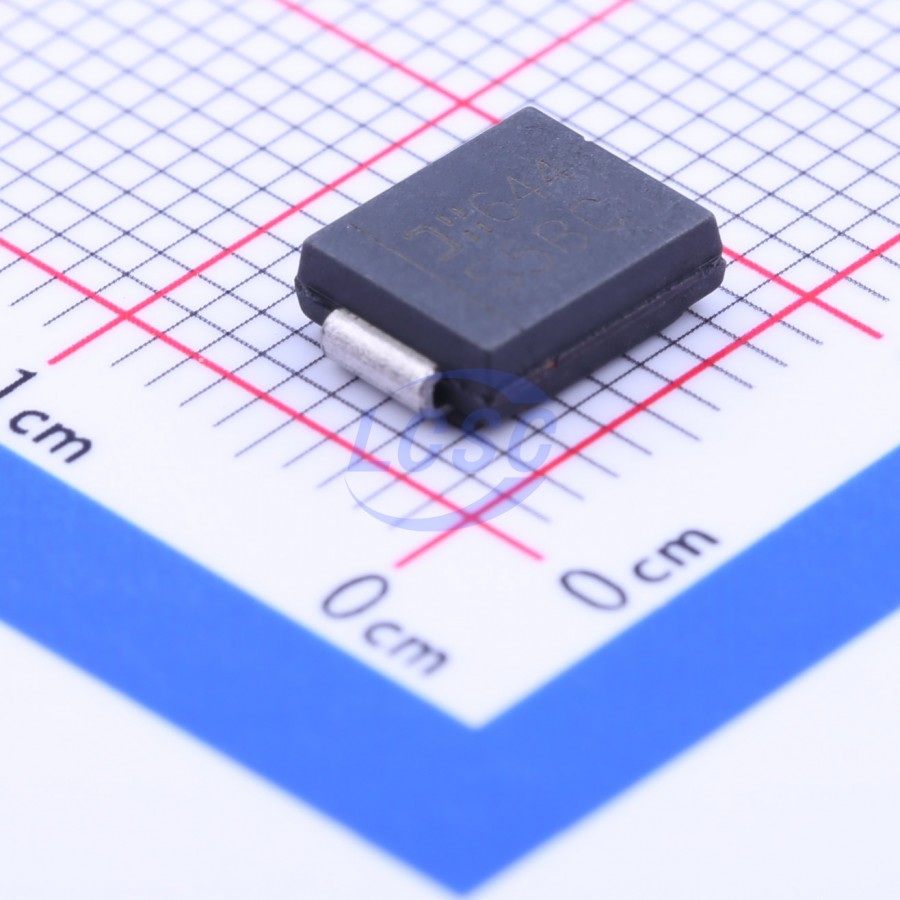

S5BC-13-F
100V 1 Independent 1.15V@5A 5A SMC(DO-214AB) Single Diodes RoHS
SMC(DO-214AB)ROHS CompliantActive
Voltage: 100V Current: 5A
- Manufacturer
- DIODES
- Manufacturer part #
- S5BC-13-F
- Store part #
- C155211
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,005 in stock
#C155211
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.05 | ₹265.25 |
| 50+ | ₹42.24 | ₹2,112.00 |
| 150+ | ₹37.61 | ₹5,641.50 |
| 500+ | ₹31.84 | ₹15,920.00 |
| 3,000+ | ₹29.26 | ₹87,780.00 |
| 6,000+ | ₹27.73 | ₹1,66,380.00 |
5 × ₹53.05
₹265.25
excl. GST
₹313.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S5BC-13-F
₹265.25 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@5A
- Reverse Leakage Current (Ir)
- 10uA@100V
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.334 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 100A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5DC-13-F#C211427DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 1,020 | ₹47.55 · 1,020 in stock | View |
 | S5GC-13-F#C211400DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 870 | ₹37.39 · 870 in stock | View |
 | S5B-E3/57T#C222533VISHAY · SMC(DO-214AB) | VISHAY | SMC(DO-214AB) | 1 | ₹64.02 · 1 in stock | View |
 | S5D-E3/9AT#C17563407VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 206 | ₹135.82 · 206 in stock | View |
 | S5D-E3/57T#C5224086VISHAY · DO-214AB | VISHAY | DO-214AB | 47 | ₹110.70 · 47 in stock | View |
