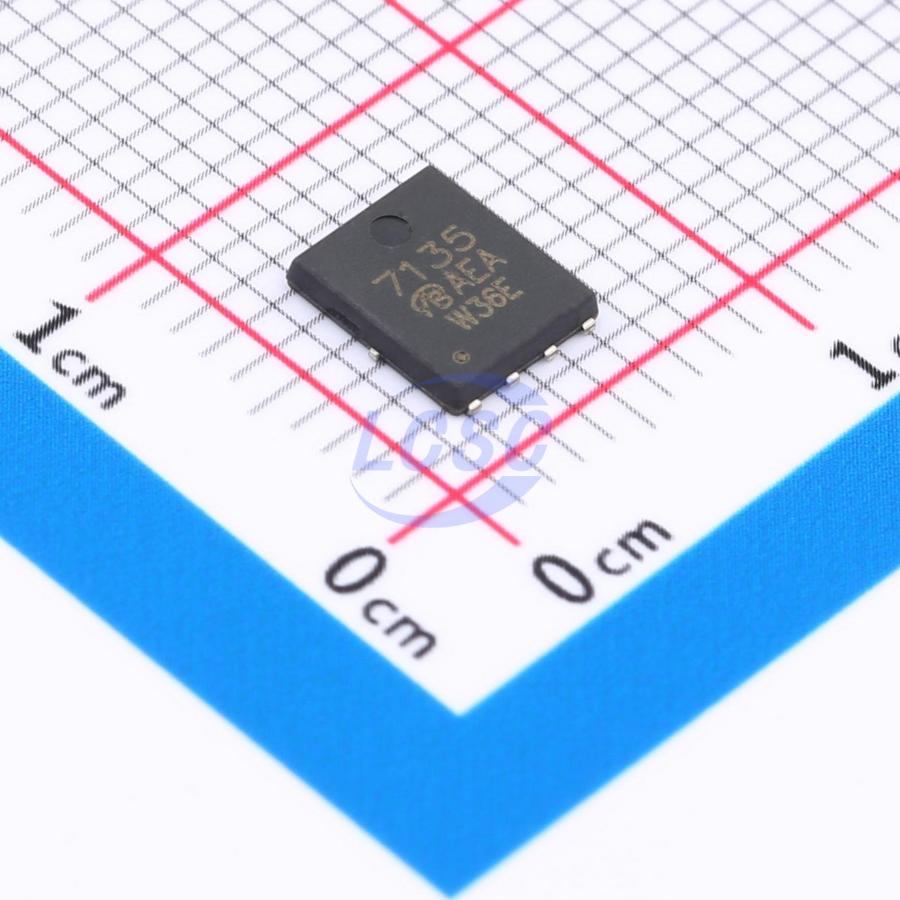

SI7135DP-T1-GE3-VB
P-Channel 30V 100A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET P-CH 30V 100A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI7135DP-T1-GE3-VB
- Store part #
- C19626743
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C19626743
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.00 | ₹188.00 |
| 10+ | ₹156.71 | ₹1,567.10 |
| 30+ | ₹139.70 | ₹4,191.00 |
| 100+ | ₹120.37 | ₹12,037.00 |
| 500+ | ₹111.75 | ₹55,875.00 |
| 1,000+ | ₹107.76 | ₹1,07,760.00 |
1 × ₹188.00
₹188.00
excl. GST
₹221.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7135DP-T1-GE3-VB
₹188.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.215nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 8.65nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 1.125nF
- RDS(on)
- 3.2mΩ@10V;5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 167nC@10V;78nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
Applications
- Laptop
- Load Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant
