VBsemi ElecDatasheet (PDF)

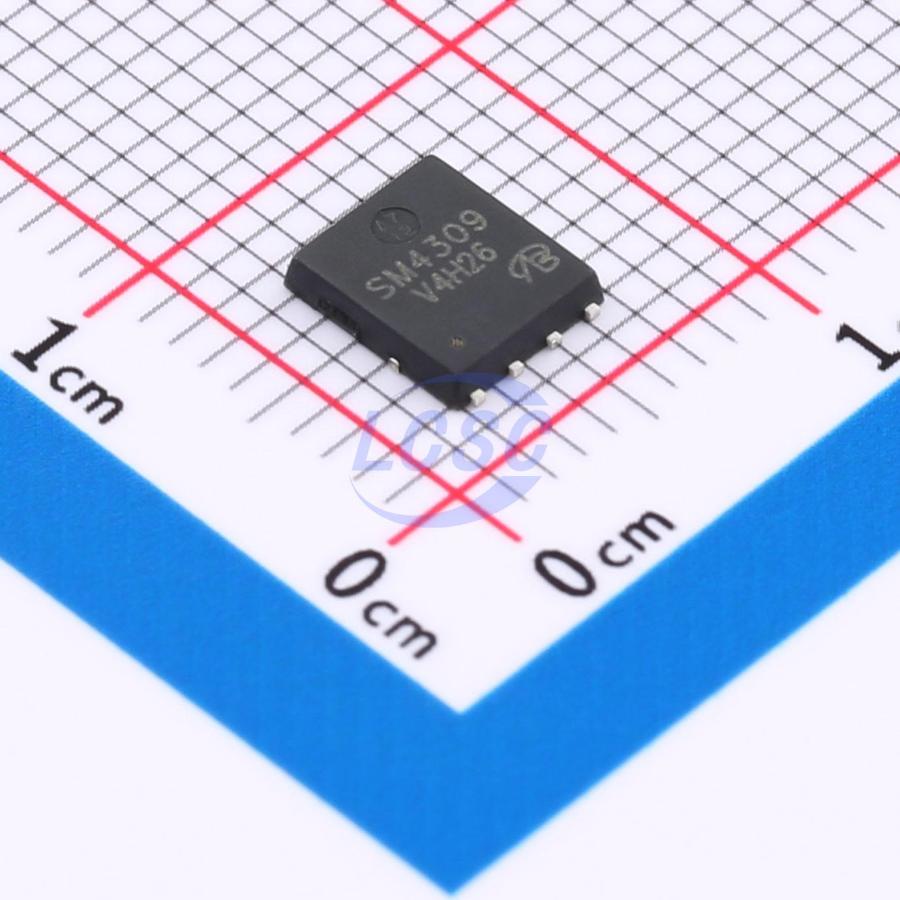

SM4309PSKP-VB
P-Channel 30V 100A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET P-CH 30V 100A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SM4309PSKP-VB
- Store part #
- C29779475
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C29779475
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹217.70 | ₹217.70 |
| 10+ | ₹185.26 | ₹1,852.60 |
| 30+ | ₹167.62 | ₹5,028.60 |
| 100+ | ₹147.61 | ₹14,761.00 |
| 500+ | ₹116.25 | ₹58,125.00 |
| 1,000+ | ₹112.12 | ₹1,12,120.00 |
1 × ₹217.70
₹217.70
excl. GST
₹256.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SM4309PSKP-VB
₹217.70 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 1.215nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 8.65nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 1.125nF
- RDS(on)
- 3.2mΩ@10V;5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 167nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
Applications
- Notebook Computer - Load Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPCA8106-VB#C19188180VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹179.50 · 20 in stock | View |
 | SI7135DP-T1-GE3-VB#C19626743VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 11 | ₹188.00 · 11 in stock | View |
 | IRFH9310TRPBF-VB#C7463908VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 42 | ₹217.70 · 42 in stock | View |
 | SI7141DP-VB#C20755419VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 18 | ₹180.02 · 18 in stock | View |
 | SI7145DP-T1-GE3-VB#C45662513VBsemi Elec · DFN-8-EP(5x6) | VBsemi Elec | DFN-8-EP(5x6) | 10 | ₹257.10 · 10 in stock | View |
