VBsemi ElecDatasheet (PDF)

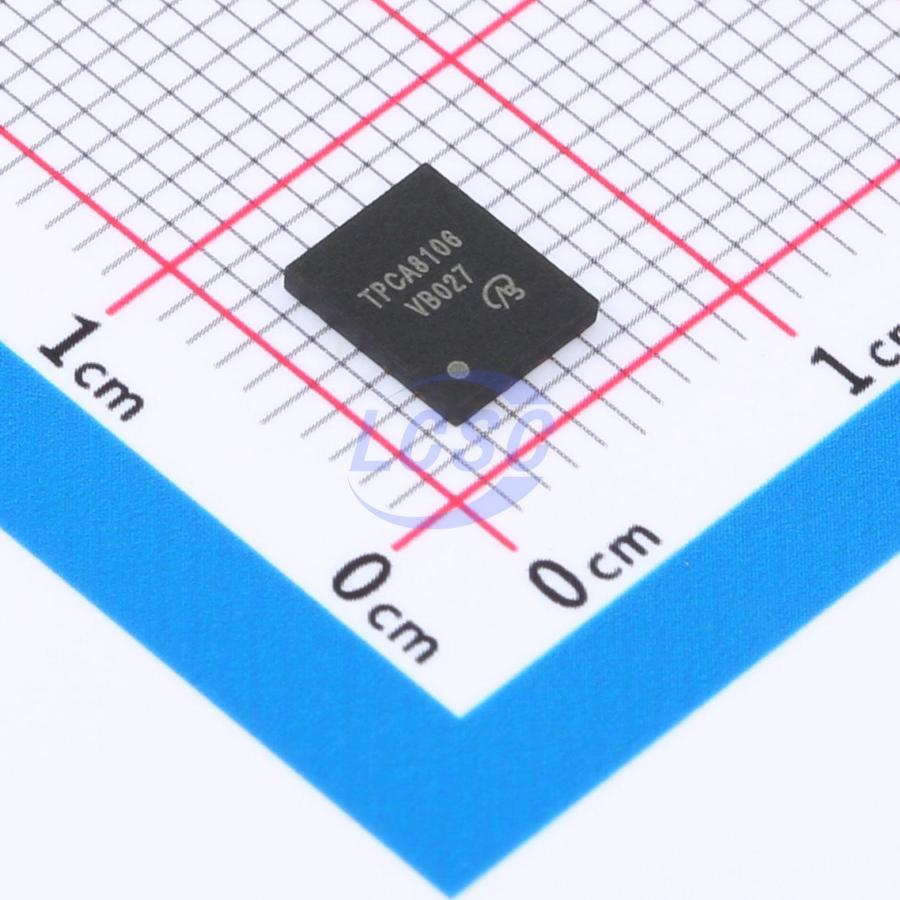

TPCA8106-VB
P-Channel 30V 100A 104W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET P-CH 30V 100A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TPCA8106-VB
- Store part #
- C19188180
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19188180
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹179.50 | ₹179.50 |
| 10+ | ₹148.51 | ₹1,485.10 |
| 30+ | ₹131.33 | ₹3,939.90 |
| 100+ | ₹112.06 | ₹11,206.00 |
| 500+ | ₹103.68 | ₹51,840.00 |
| 1,000+ | ₹99.70 | ₹99,700.00 |
1 × ₹179.50
₹179.50
excl. GST
₹211.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPCA8106-VB
₹179.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.215nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 8.65nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 1.125nF
- RDS(on)
- 3.2mΩ@10V;5mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 78nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Laptop
- Load Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7135DP-T1-GE3-VB#C19626743VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 11 | ₹188.00 · 11 in stock | View |
 | SM4309PSKP-VB#C29779475VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 46 | ₹217.70 · 46 in stock | View |
 | IRFH9310TRPBF-VB#C7463908VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 42 | ₹217.70 · 42 in stock | View |
 | SI7141DP-VB#C20755419VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 18 | ₹180.02 · 18 in stock | View |
 | SI7145DP-T1-GE3-VB#C45662513VBsemi Elec · DFN-8-EP(5x6) | VBsemi Elec | DFN-8-EP(5x6) | 10 | ₹257.10 · 10 in stock | View |
