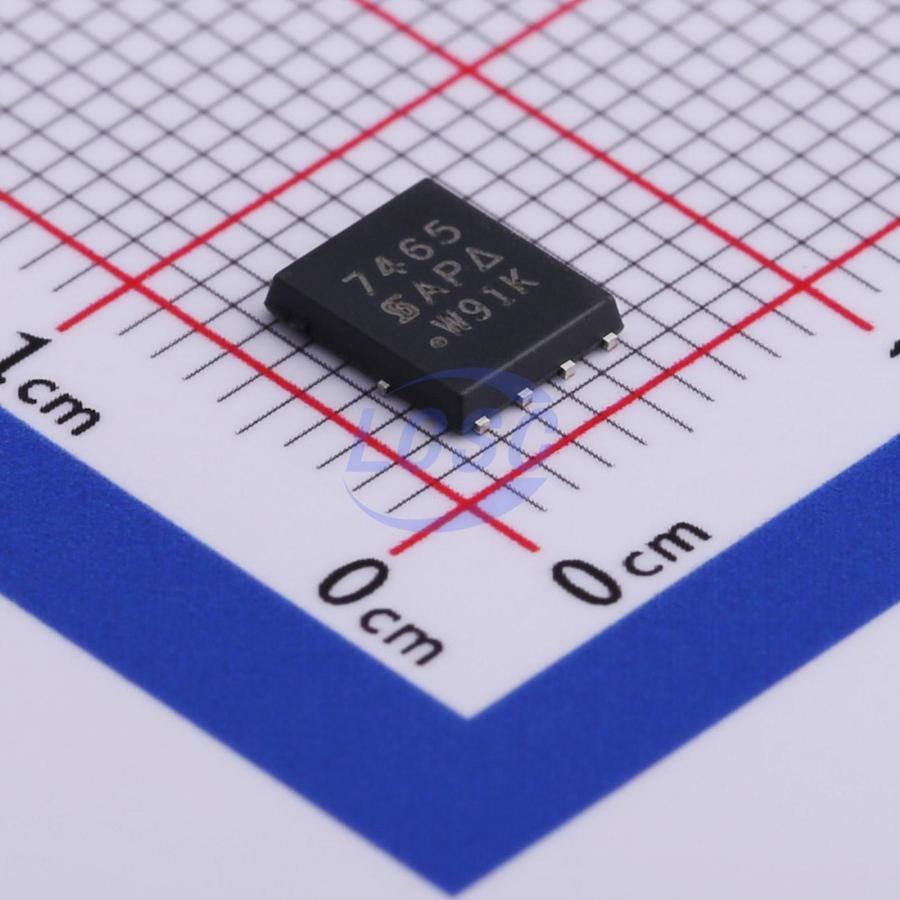

SI7465DP-T1-GE3
P-Channel 60V 5A 3.5W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET P-CH 60V 5A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7465DP-T1-GE3
- Store part #
- C499482
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,471 in stock
#C499482
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.16 | ₹56.16 |
| 10+ | ₹48.77 | ₹487.70 |
| 30+ | ₹45.06 | ₹1,351.80 |
| 100+ | ₹41.36 | ₹4,136.00 |
| 500+ | ₹39.19 | ₹19,595.00 |
| 1,000+ | ₹38.09 | ₹38,090.00 |
1 × ₹56.16
₹56.16
excl. GST
₹66.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7465DP-T1-GE3
₹56.16 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 5A
- Pd - Power Dissipation
- 3.5W
- RDS(on)
- 64mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 26nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
Overview
MOSFETs for switching applications can now achieve die on-resistance of approximately 1mΩ and handle currents up to 85A. Although die performance has improved significantly compared to a few years ago, power MOSFET packaging technology must keep pace as well. Clearly, it is unacceptable for packaging to degrade the performance of high-performance dies. PowerPAK is a new packaging technology that addresses these issues.
Key features
- TrenchFET Power MOSFET
- New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- RoHS COMPLIANT HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6060PD56#C7472879TECH PUBLIC · PDFN5X6-8L | TECH PUBLIC | PDFN5X6-8L | 858 | ₹115.11 · 858 in stock | View |
 | CMSA18P10#C53310606Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 40 | ₹33.21 · 40 in stock | View |
 | SI7489DP-T1-GE3#C499484VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | On request | ₹595.40 · 0 in stock | View |
 | SI7461DP-T1-GE3#C553968VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 1,147 | ₹445.60 · 1,147 in stock | View |
 | SI7465DP-T1-E3#C141555VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 1,938 | ₹168.11 · 1,938 in stock | View |
