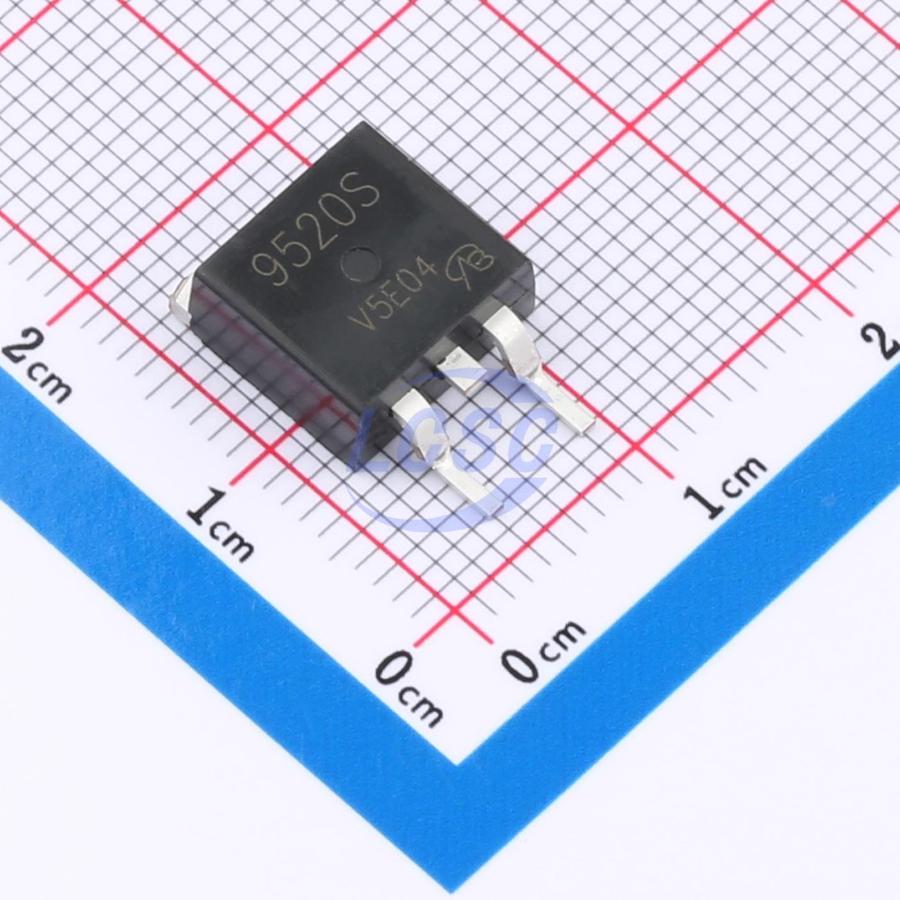

SIHF9520S-GE3-VB
P-Channel 100V 12A 2.1W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET P-CH 100V 12A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIHF9520S-GE3-VB
- Store part #
- C47993957
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993957
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.12 | ₹112.12 |
| 10+ | ₹95.57 | ₹955.70 |
| 50+ | ₹87.08 | ₹4,354.00 |
| 100+ | ₹78.81 | ₹7,881.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹112.12
₹112.12
excl. GST
₹132.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SIHF9520S-GE3-VB
₹112.12 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQB8P10-VB#C20755025VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 18 | ₹82.56 · 18 in stock | View |
 | IRF9530STRLPBF-VB#C47993801VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹89.04 · 20 in stock | View |
 | IRF9520NSTRR-VB#C47993804VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 51 | ₹94.05 · 51 in stock | View |
 | IPB19DP10NMATMA1-VB#C47993818VBsemi Elec · D2PAK(TO-263) | VBsemi Elec | D2PAK(TO-263) | 9 | ₹94.70 · 9 in stock | View |
 | FQB8P10TM-VB#C47993837VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹87.90 · 10 in stock | View |
