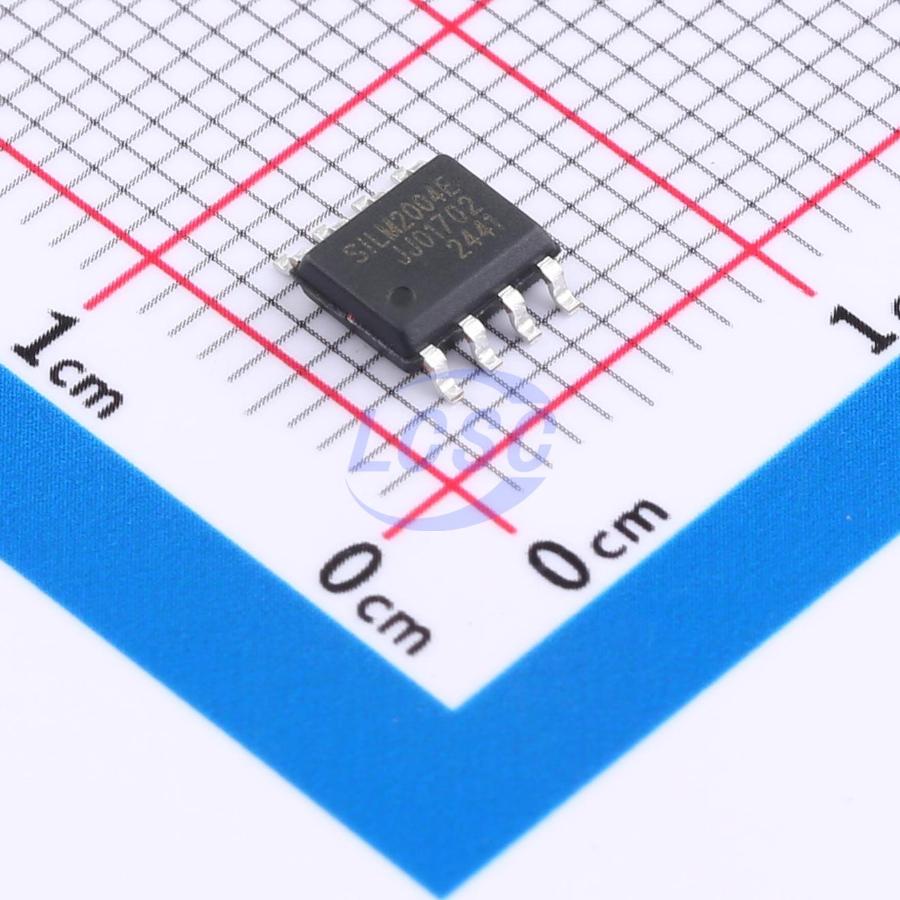

SiLM2004ECA-DG
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
200V Half-Bridge Driver
- Manufacturer
- Sillumin
- Manufacturer part #
- SiLM2004ECA-DG
- Store part #
- C48391672
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C48391672
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.97 | ₹139.85 |
| 50+ | ₹21.96 | ₹1,098.00 |
| 150+ | ₹19.40 | ₹2,910.00 |
| 500+ | ₹16.18 | ₹8,090.00 |
| 2,500+ | ₹14.75 | ₹36,875.00 |
| 5,000+ | ₹13.89 | ₹69,450.00 |
5 × ₹27.97
₹139.85
excl. GST
₹165.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SiLM2004ECA-DG
₹139.85 for 5 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 125ns
- Quiescent Current
- 200uA
- Voltage - Supply
- 10V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 25ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.194 g
Overview
SiLM2004E is a high-voltage, high-speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up immune CMOS technology enables a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high-pulse-current buffer stages designed to minimize driver cross-conduction. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in high-side configurations, with operating voltages up to 200V.
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +200V
- Tolerates negative transient voltage, immune to dV/dt noise
- Gate drive supply range 10V to 18V
- Undervoltage lockout
- Compatible with 3.3V and 5V logic levels
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internally set dead time
- Shutdown input turns off both channels simultaneously
- RoHS compliant
- SOP8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SLM2005ECA-DG#C5298378Sillumin · SOP-8 | Sillumin | SOP-8 | 3,560 | ₹29.08 · 3,560 in stock | View |
 | SLM2009CA-DG#C3001941Sillumin · SOIC-8 | Sillumin | SOIC-8 | 3,855 | ₹20.80 · 3,855 in stock | View |
