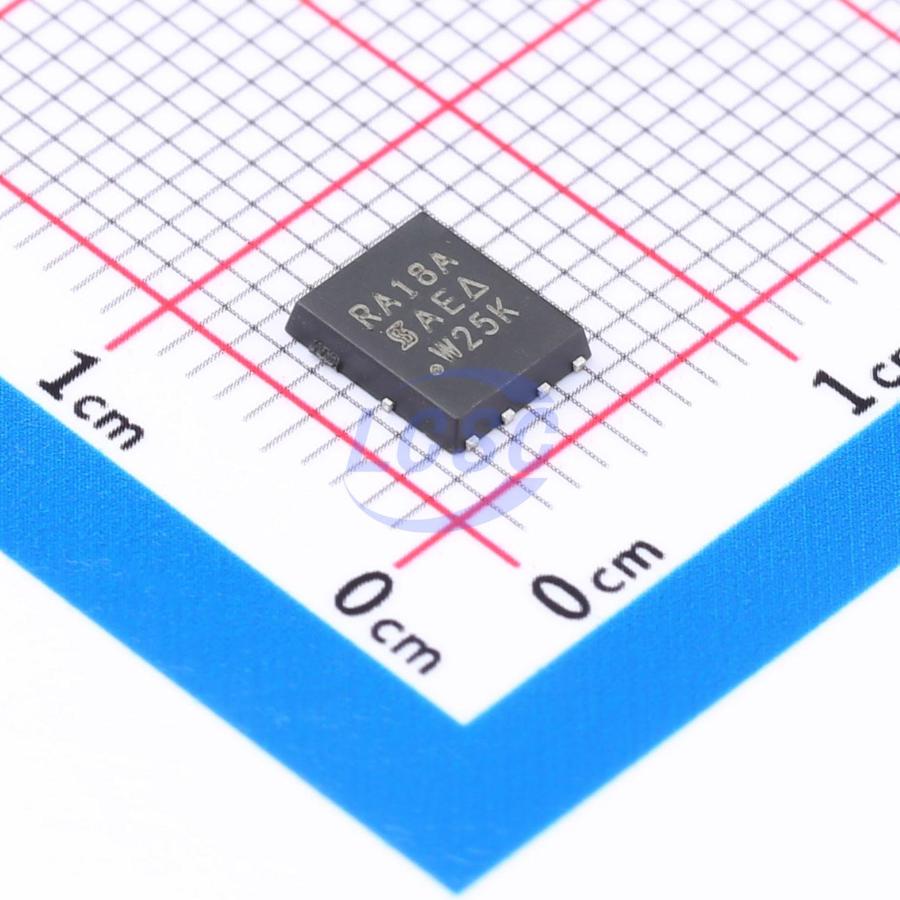

SIRA18ADP-T1-GE3
N-Channel 30V 14.5A 3.3W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 30V 14.5A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIRA18ADP-T1-GE3
- Store part #
- C727309
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,503 in stock
#C727309
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.44 | ₹65.44 |
| 10+ | ₹52.01 | ₹520.10 |
| 30+ | ₹46.16 | ₹1,384.80 |
| 100+ | ₹39.00 | ₹3,900.00 |
| 500+ | ₹35.76 | ₹17,880.00 |
| 1,000+ | ₹33.80 | ₹33,800.00 |
1 × ₹65.44
₹65.44
excl. GST
₹77.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIRA18ADP-T1-GE3
₹65.44 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 287pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 3.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 14.5A
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 8.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- DC/DC conversion
- Battery protection
- Load switching
- DC/AC inverters
- Synchronous buck converters
Key features
- TrenchFET Gen IV power MOSFET
- 100% Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TDM3458#C232915Techcode · DFN-8(5x6) | Techcode | DFN-8(5x6) | 2,710 | ₹36.95 · 2,710 in stock | View |
 | SIRA18DP-T1-GE3#C144962VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 30 | ₹44.56 · 30 in stock | View |
 | SIRA88DP-T1-GE3#C727319VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 1 | ₹31.32 · 1 in stock | View |
 | SED4060G#C238671SINO-IC · DFN-8(5x6) | SINO-IC | DFN-8(5x6) | 15 | ₹52.58 · 15 in stock | View |
 | CSD18504Q5A#C78118TI · SON-8(5x6) | TI | SON-8(5x6) | 647 | ₹193.17 · 647 in stock | View |
