SN74AC04PWR
2V~6V 7ns@5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS CompliantActive

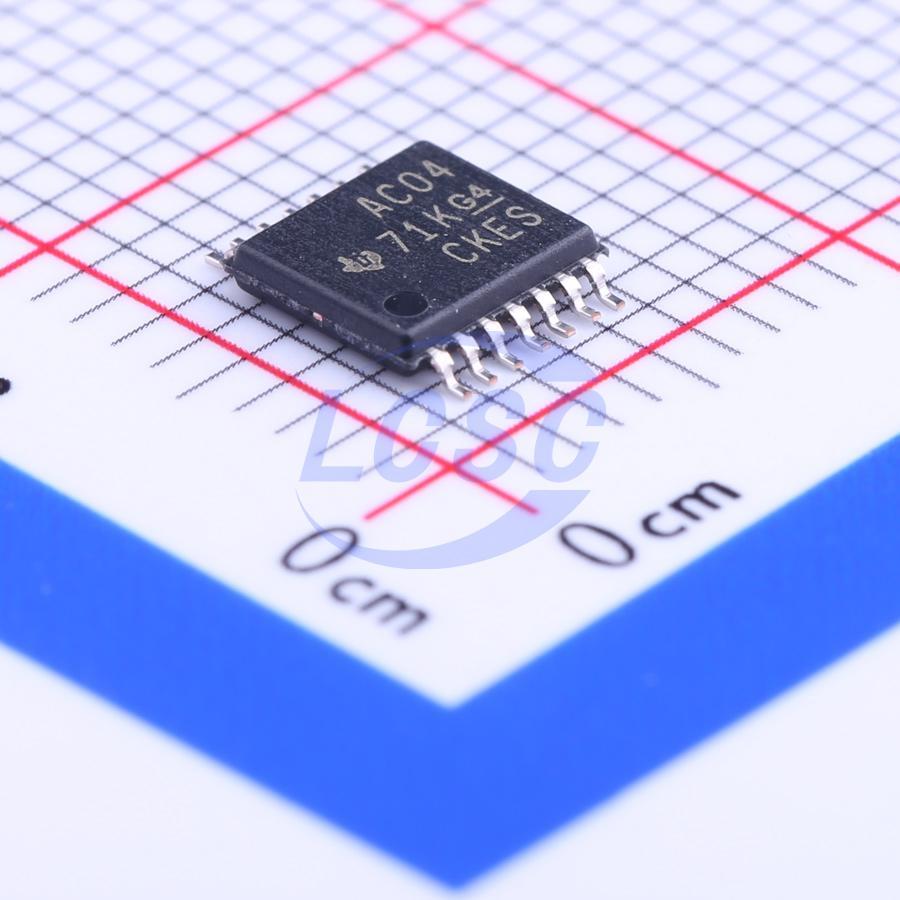

HEX INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74AC04PWR
- Store part #
- C129372
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,055 in stock
#C129372
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.18 | ₹200.90 |
| 50+ | ₹32.43 | ₹1,621.50 |
| 150+ | ₹29.11 | ₹4,366.50 |
| 500+ | ₹24.97 | ₹12,485.00 |
| 2,000+ | ₹22.48 | ₹44,960.00 |
| 4,000+ | ₹21.37 | ₹85,480.00 |
5 × ₹40.18
₹200.90
excl. GST
₹237.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AC04PWR
₹200.90 for 5 + GST
Specifications
- Logic Family
- 74AC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 7ns@5V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.1V~3.85V
- Output Logic Level - High
- 2.4V;3.7V;4.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The 'AC04 devices contain six independent inverters. The devices perform the Boolean function Y = A(overline)
Key features
- Supply voltage operating range: 2V~6V
- Inputs withstand up to 6V
- Maximum propagation delay tpd of 7ns at 5V supply
- Maximum supply voltage range: -0.5V~7V
- Maximum input voltage range: -0.5V~VCC+0.5V
- Maximum output voltage range: -0.5V~VCC+0.5V
- Input clamp current: ±20mA
- Output clamp current: ±20mA
- Continuous output current: ±50mA
- Continuous current through VCC or GND: ±200mA
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W
- Storage temperature range: -65℃~150℃
- All unused inputs must be tied to VCC or GND for proper device operation
- Stress beyond maximum ratings may cause permanent device damage. These are stress ratings only and do not imply functional operation beyond recommended operating conditions. Extended exposure to maximum rated conditions may affect device reliability.
