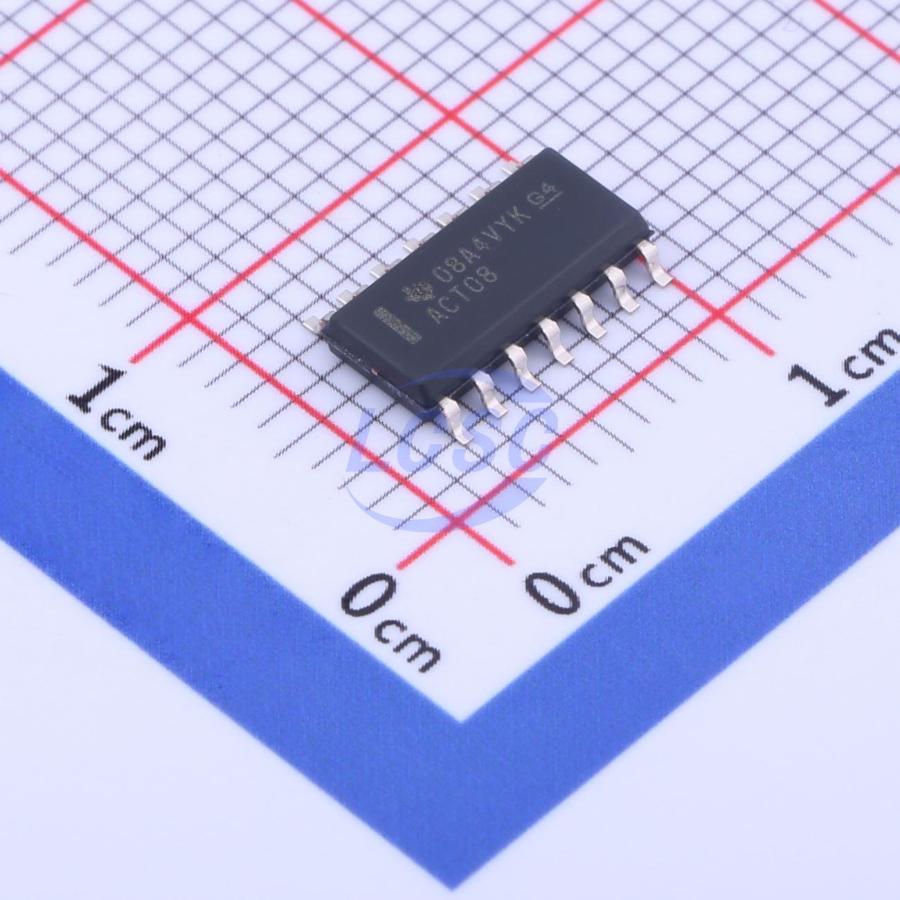

SN74ACT08DR
TTL-compatible CMOS 4.5V~5.5V 9ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74ACT08DR
- Store part #
- C2149499
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
494 in stock
#C2149499
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.87 | ₹53.87 |
| 10+ | ₹42.36 | ₹423.60 |
| 30+ | ₹37.36 | ₹1,120.80 |
| 100+ | ₹31.06 | ₹3,106.00 |
| 500+ | ₹28.46 | ₹14,230.00 |
| 1,000+ | ₹26.72 | ₹26,720.00 |
1 × ₹53.87
₹53.87
excl. GST
₹63.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74ACT08DR
₹53.87 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74ACT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 9ns@5V,50pF
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.7V;4.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The ’ACT08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean functions Y = A • B or Y = A(overline) + B(overline) in positive logic.
Key features
- Operating supply voltage VCC range: 4.5V~5.5V
- Input voltage tolerance up to 5.5V
- Maximum propagation delay tpd of 10ns at 5V supply
- TTL-compatible input voltage levels
- Maximum rated supply voltage range: -0.5V~7V
- Maximum rated input voltage range: -0.5V~VCC+0.5V; output voltage range: -0.5V~VCC+0.5V
- Maximum rated input clamp current: ±20mA; output clamp current: ±20mA
- Maximum rated continuous output current: ±50mA; continuous current through VCC or GND: ±200mA
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W
- Storage temperature range: -65℃~150℃
- All unused inputs must be tied to VCC or GND for proper device operation
- Available packages by part number: SN54ACT08 in J, W, FK packages; SN74ACT08 in D, DB, N, NS, PW packages
