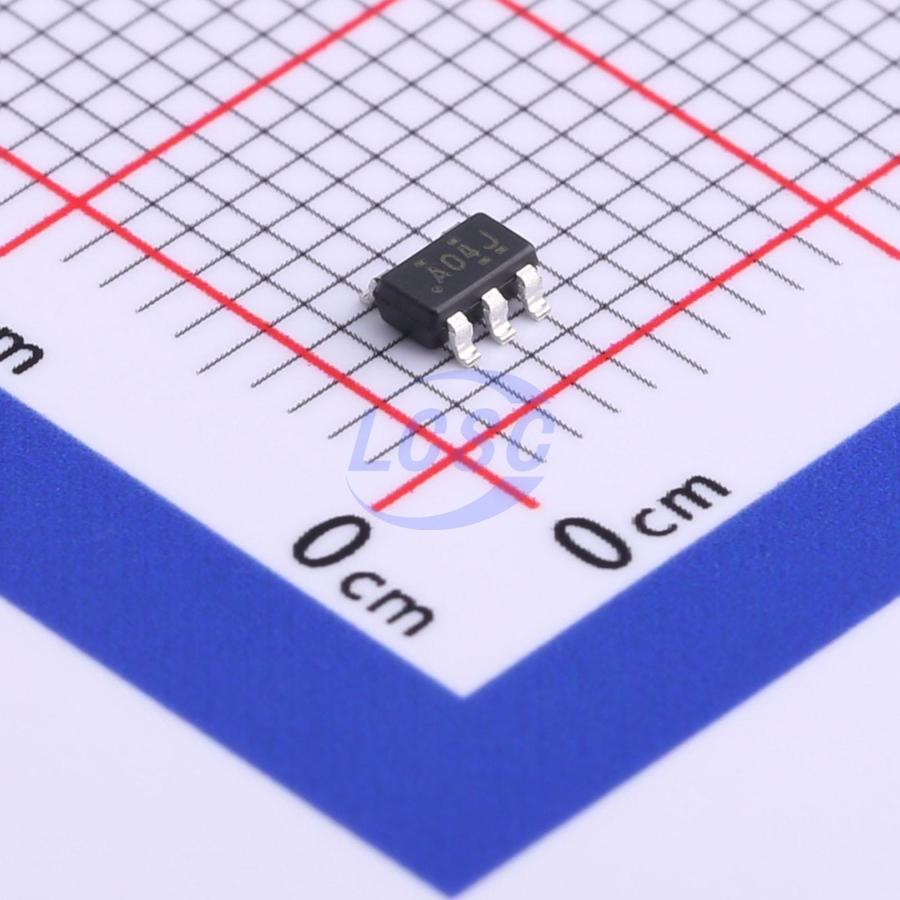

SN74AHC1G04DBVR
1uA 2V~5.5V 1 7.5ns@5V,50pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G04DBVR
- Store part #
- C7465
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64,460 in stock
#C7465
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.00 | ₹90.00 |
| 100+ | ₹7.14 | ₹714.00 |
| 300+ | ₹6.22 | ₹1,866.00 |
| 3,000+ | ₹5.04 | ₹15,120.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.21 | ₹37,890.00 |
10 × ₹9.00
₹90.00
excl. GST
₹106.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G04DBVR
₹90.00 for 10 + GST
Specifications
- output type
- Push-pull
- Features
- Noise suppression function
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~3.85V
- Input Logic Level - Low
- 500mV~1.65V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
The SN74AHC1G04 contains one inverter gate. The device performs the Boolean function Y = A (overline).
Applications
- Cameras
- E-Meters
- Ethernet Switches
- Infotainment
Key features
- Wide operating voltage range
- Operates from 2 V to 5.5 V
- Allows down-voltage translation
- Inputs accept voltages to 5.5 V
- Max propagation delay (tpd) of 6.5 ns at 5 V
- Low Power Consumption, 10-μA Max ICC
- ±8-mA Output Drive at 5 V
- Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
