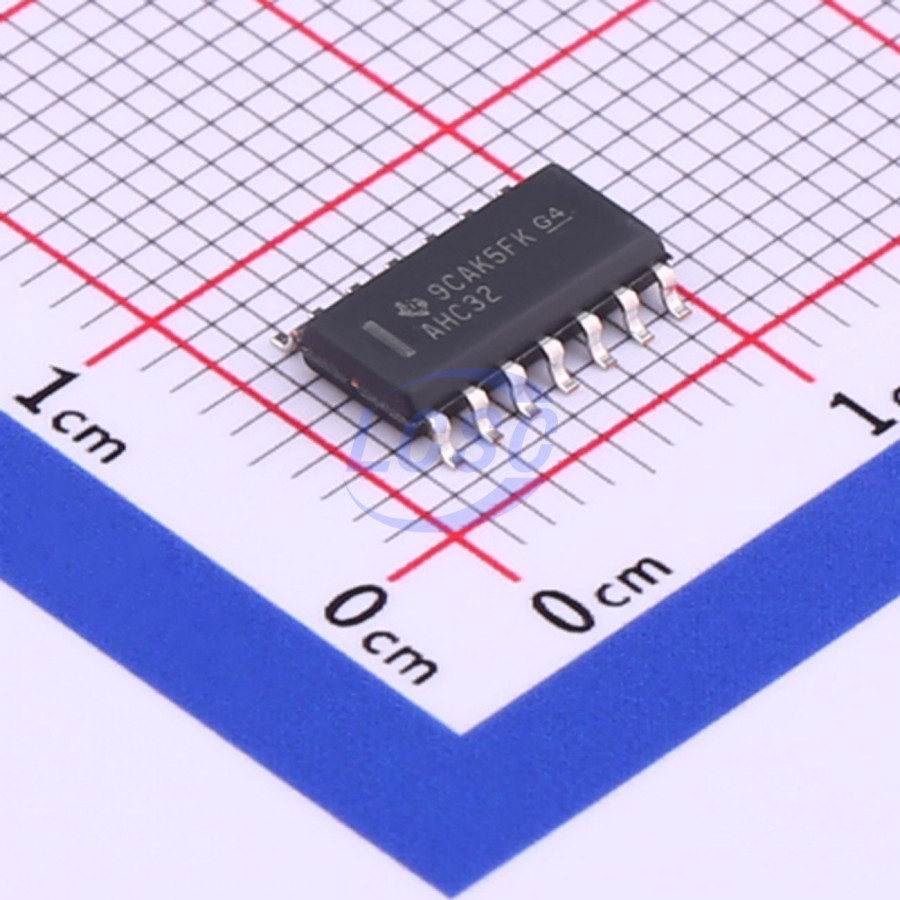

SN74AHC32DR
2uA 2V~5.5V 8.5ns@5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC32DR
- Store part #
- C132988
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C132988
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.36 | ₹42.36 |
| 10+ | ₹33.46 | ₹334.60 |
| 30+ | ₹28.89 | ₹866.70 |
| 100+ | ₹24.98 | ₹2,498.00 |
| 500+ | ₹23.89 | ₹11,945.00 |
| 1,000+ | ₹23.25 | ₹23,250.00 |
1 × ₹42.36
₹42.36
excl. GST
₹49.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHC32DR
₹42.36 for 1 + GST
Specifications
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Logic Family
- 74AHC Series
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;3.8V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 8.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The 'AHC32 devices are quadruple 2- input positive- OR gates. These devices perform the Boolean function Y = A•B or Y = A + B in positive logic.
Key features
- Operating Range 2-V to 5.5-V VCC
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C191)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC32QDRQ1#C2878703TI · SOIC-14 | TI | SOIC-14 | 70 | ₹55.01 · 70 in stock | View |
 | MC74VHC32DR2G#C904181onsemi · SOIC-14 | onsemi | SOIC-14 | 177 | ₹76.48 · 177 in stock | View |
 | TC74VHC32F(EL,K,F)#C5351366TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 956 | ₹71.71 · 956 in stock | View |
 | SN74HCS32QDRQ1#C2870688TI · SOIC-14 | TI | SOIC-14 | 22 | ₹53.98 · 22 in stock | View |
 | SN74HCS32DR#C2873242TI · SOIC-14 | TI | SOIC-14 | 995 | ₹38.01 · 995 in stock | View |
