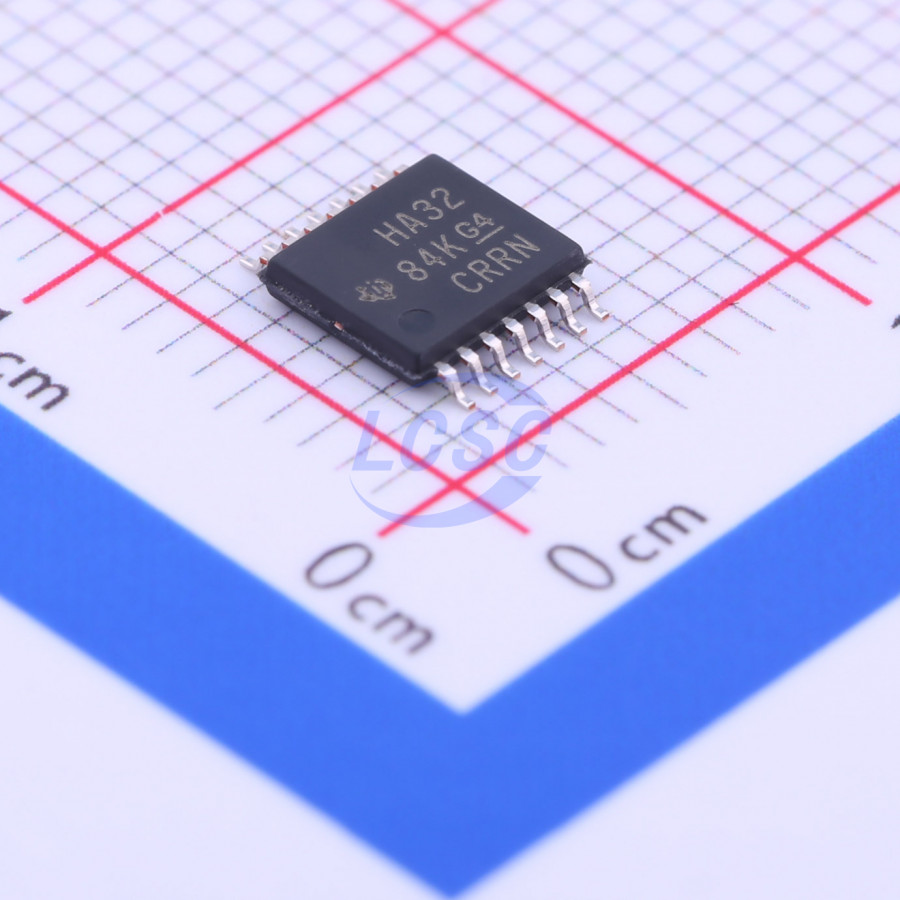

SN74AHC32PWR
2V~5.5V 7.5ns@5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC32PWR
- Store part #
- C132989
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,215 in stock
#C132989
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.50 | ₹227.50 |
| 50+ | ₹36.73 | ₹1,836.50 |
| 150+ | ₹32.44 | ₹4,866.00 |
| 500+ | ₹28.62 | ₹14,310.00 |
| 2,000+ | ₹27.57 | ₹55,140.00 |
| 4,000+ | ₹26.94 | ₹1,07,760.00 |
5 × ₹45.50
₹227.50
excl. GST
₹268.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC32PWR
₹227.50 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 7.5ns@5V,50pF
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The 'AHC32 devices are quadruple 2- input positive- OR gates. These devices perform the Boolean function Y = A•B or Y = A + B in positive logic.
Key features
- Operating Range 2-V to 5.5-V VCC
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C191)
