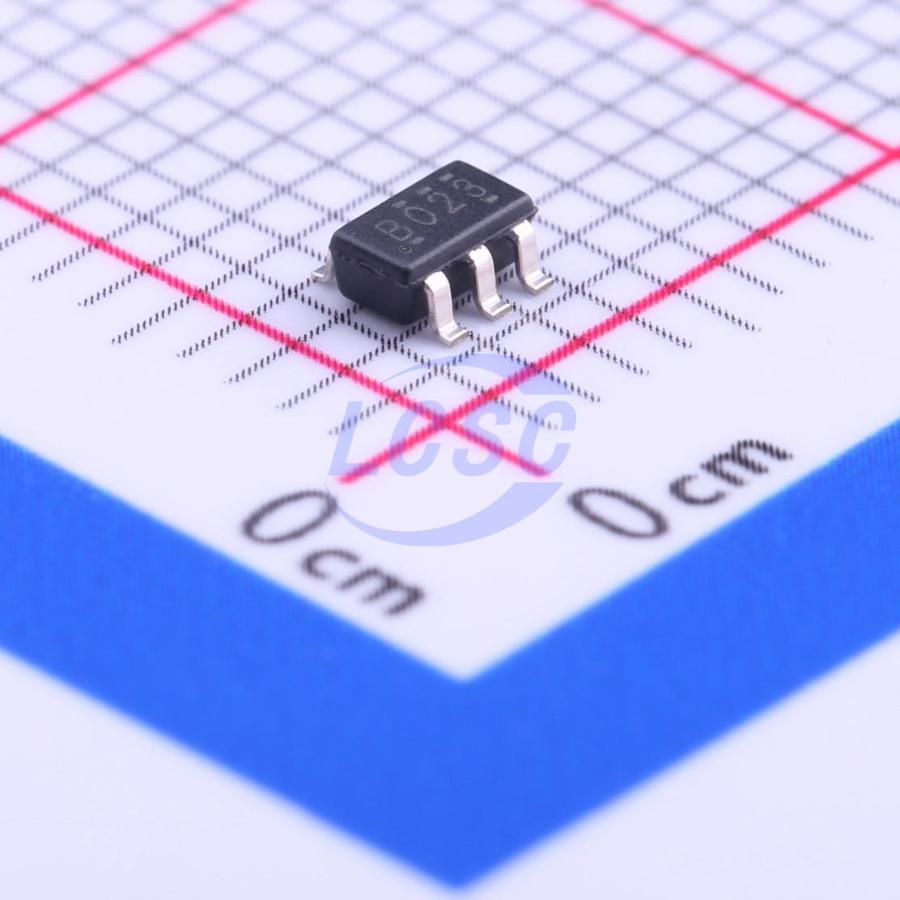

SN74AHCT1G02DBVR
TTL-compatible CMOS 4.5V~5.5V 8.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
Single 2-Input Positive-NOR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G02DBVR
- Store part #
- C163710
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,275 in stock
#C163710
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.47 | ₹77.35 |
| 50+ | ₹12.20 | ₹610.00 |
| 150+ | ₹10.57 | ₹1,585.50 |
| 500+ | ₹9.34 | ₹4,670.00 |
| 3,000+ | ₹7.30 | ₹21,900.00 |
| 6,000+ | ₹6.81 | ₹40,860.00 |
5 × ₹15.47
₹77.35
excl. GST
₹91.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G02DBVR
₹77.35 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 8.5ns@5V,50pF
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This device contains a single 2-input NOR gate that performs the Boolean function Y = A(overline) • B(overline) or Y = (A + B)(overline) in positive logic.
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tₚd of 6.5 ns at ±5 V
- Low Power Consumption, 10 μA Max ICC
- ±8-mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds ±50 mA Per JESD 17
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
