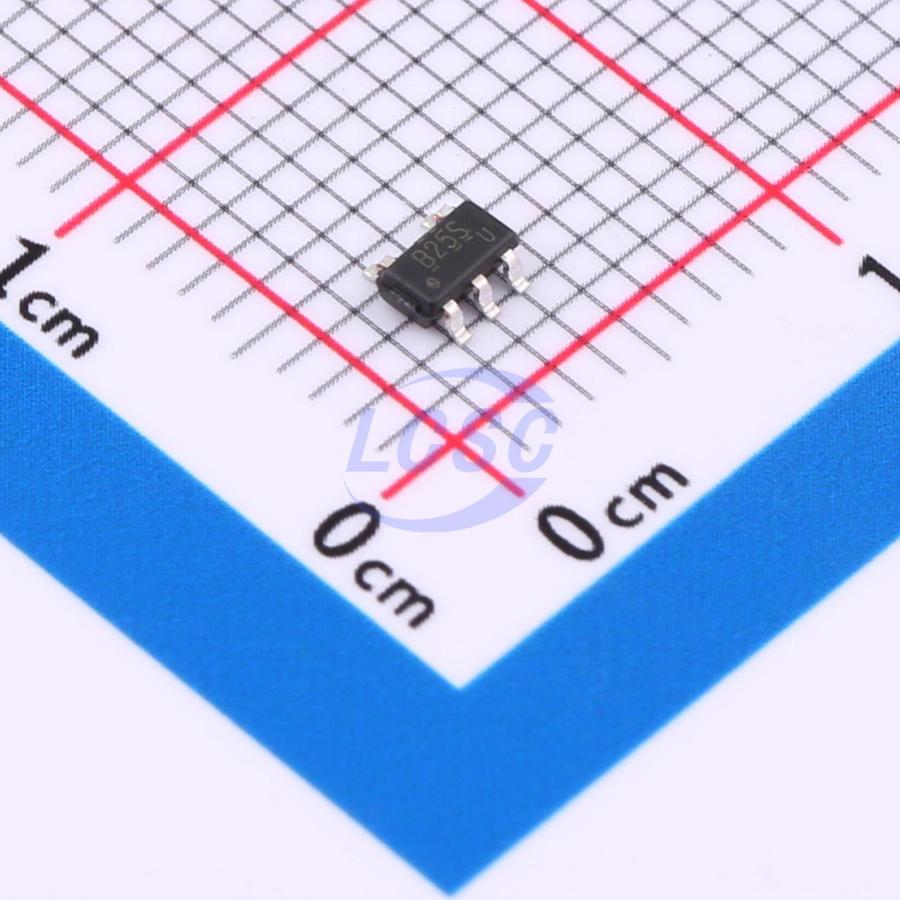

SN74AHCT1G125DBVR(UMW)
TTL-compatible CMOS 4.5V~5.5V 12ns@5V,50pF 10uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
Single Bus Buffer Gate with 3-state Output
- Manufacturer
- UMW
- Manufacturer part #
- SN74AHCT1G125DBVR(UMW)
- Store part #
- C20617903
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30,220 in stock
#C20617903
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.09 | ₹70.90 |
| 100+ | ₹5.56 | ₹556.00 |
| 300+ | ₹4.79 | ₹1,437.00 |
| 3,000+ | ₹4.21 | ₹12,630.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.52 | ₹31,680.00 |
10 × ₹7.09
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G125DBVR(UMW)
₹70.90 for 10 + GST
Specifications
- output type
- Tri-State
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 12ns@5V,50pF
- Output Logic Level - Low
- 440mV
- Features
- Controllable output enable
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The SN74AHCT1G125 device is a single bus buffer gate/line driver with 3-state output. The output is disabled when the output-enable OE(overline) input is high. When OE(overline) is low, data is passed from the A input to the Y output.
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tpd of 10 ns at 5 V
- Low Power Consumption, 10 µA Max ICC
- ±8mA Output Drive at 5 V
- Inputs are TTL-Voltage Compatible
- Packages are SC70-5,SOT23-5 or small DFN6 MSL3(SC70-5,SOT23-5，DFNG(1*1.5))
