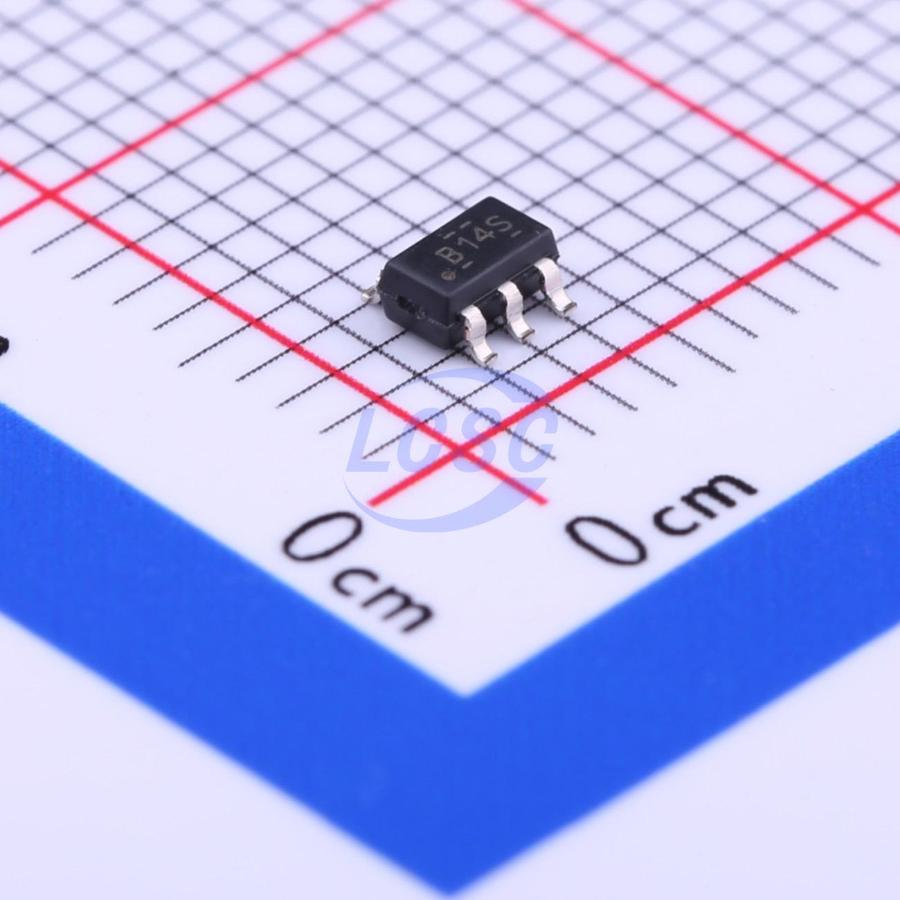

SINGLE SCHMITT-TRIGGER INVERTER GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G14DBVR
- Store part #
- C55250
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,085 in stock
#C55250
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.90 | ₹209.50 |
| 50+ | ₹33.13 | ₹1,656.50 |
| 150+ | ₹29.38 | ₹4,407.00 |
| 500+ | ₹24.69 | ₹12,345.00 |
| 3,000+ | ₹20.28 | ₹60,840.00 |
| 6,000+ | ₹19.04 | ₹1,14,240.00 |
5 × ₹41.90
₹209.50
excl. GST
₹247.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G14DBVR
₹209.50 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 8ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 500mV~600mV
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G14 contains a single inverter gate. The device performs the Boolean function Y = A(overline). The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT-) signals.
Key features
- Operating Range 4.5 - 5.5 V
- Max tpd of 8 ns at 5 V
- Low Power Consumption, 10 μA Max Icc
- 18 mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
