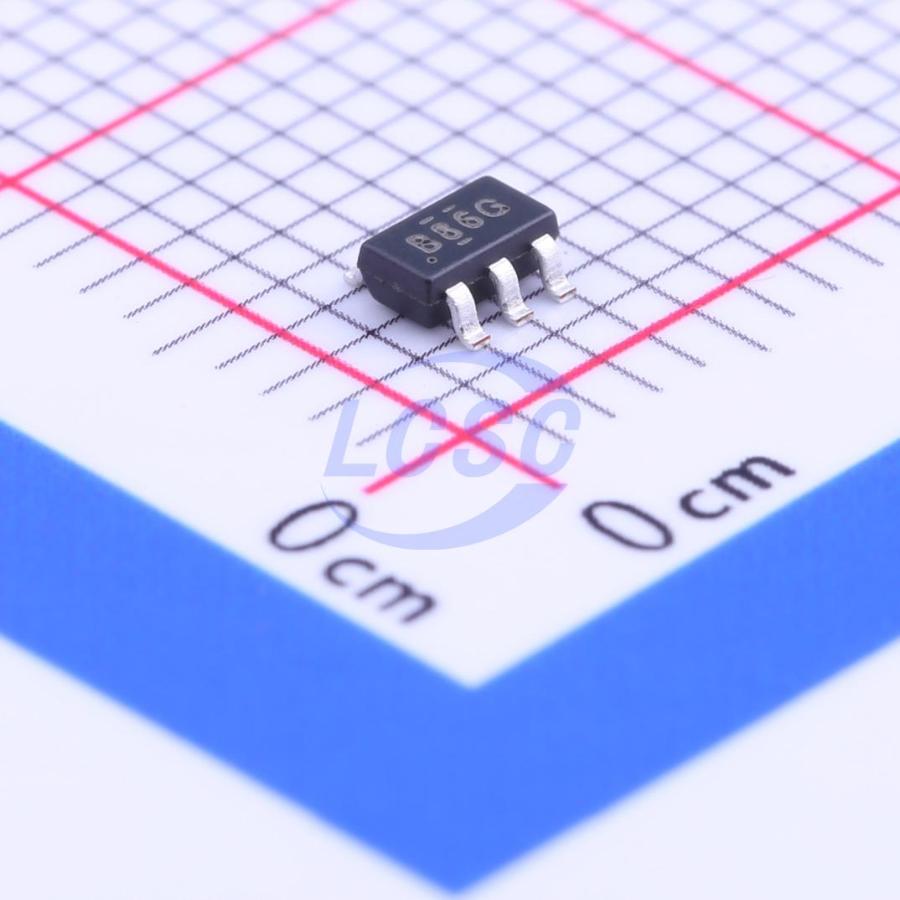

Single 2-Input Exclusive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G86DBVR
- Store part #
- C43417
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,675 in stock
#C43417
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.23 | ₹46.15 |
| 50+ | ₹7.46 | ₹373.00 |
| 150+ | ₹6.55 | ₹982.50 |
| 500+ | ₹5.81 | ₹2,905.00 |
| 3,000+ | ₹5.54 | ₹16,620.00 |
| 6,000+ | ₹5.36 | ₹32,160.00 |
5 × ₹9.23
₹46.15
excl. GST
₹54.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G86DBVR
₹46.15 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Controllable output enable
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G86 is a single 2-input exclusive-OR gate. The device performs the Boolean function Y = A⊕B or Y = A(overline)B + AB(overline) in positive logic.
Applications
- Industrial PCs
- Stepper Motors
- AC Inverter Drives
- Notebook PCs
- Smart Meters: Data Concentrators
- Enterprise Servers
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tpd of 8 ns at 5 V
- Low Power Consumption, 10-A Maximum ICC
- 8-mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
