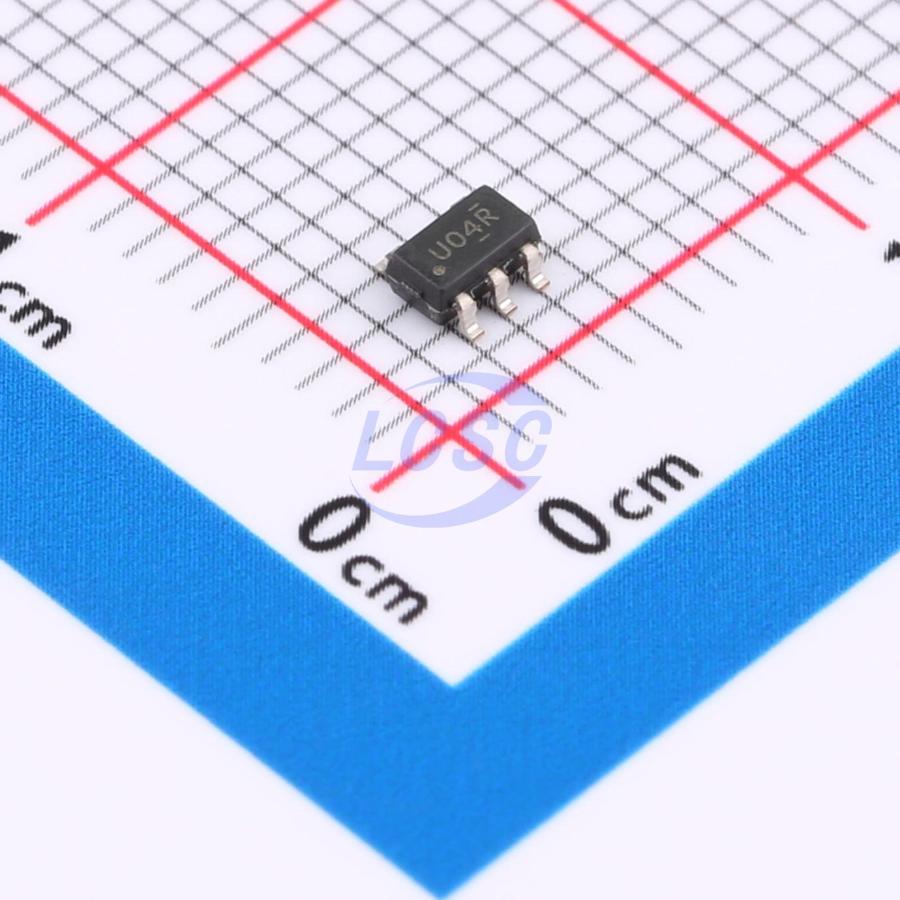

SN74AUC1G04DBVR
800mV~2.7V 1.9ns@2.5V,30pF 10uA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AUC1G04DBVR
- Store part #
- C163713
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,405 in stock
#C163713
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.05 | ₹260.25 |
| 50+ | ₹40.85 | ₹2,042.50 |
| 150+ | ₹35.39 | ₹5,308.50 |
| 500+ | ₹30.52 | ₹15,260.00 |
| 3,000+ | ₹29.19 | ₹87,570.00 |
| 6,000+ | ₹28.38 | ₹1,70,280.00 |
5 × ₹52.05
₹260.25
excl. GST
₹307.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUC1G04DBVR
₹260.25 for 5 + GST
Specifications
- Logic Family
- 74AUC
- Voltage - Supply
- 800mV~2.7V
- Output Logic Level - Low
- 600mV
- Propagation Delay
- 1.9ns@2.5V,30pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 0V~700mV
- Input Logic Level - High
- 1.7V
- Output Logic Level - High
- 1.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 9mA
- Current - Output Low(IOL)
- 9mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Available in the Texas Instruments NanoFree Package Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation This single inverter gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUC1G04 performs the Boolean function Y = ¬A. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the output, preventing damaging current backflow through the device when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-Ray Player and Home Theater
- Embedded PC
- MP3 Player/Recorder (Portable Audio)
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD/Digital and High-Definition (HDTV)
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
Key features
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
