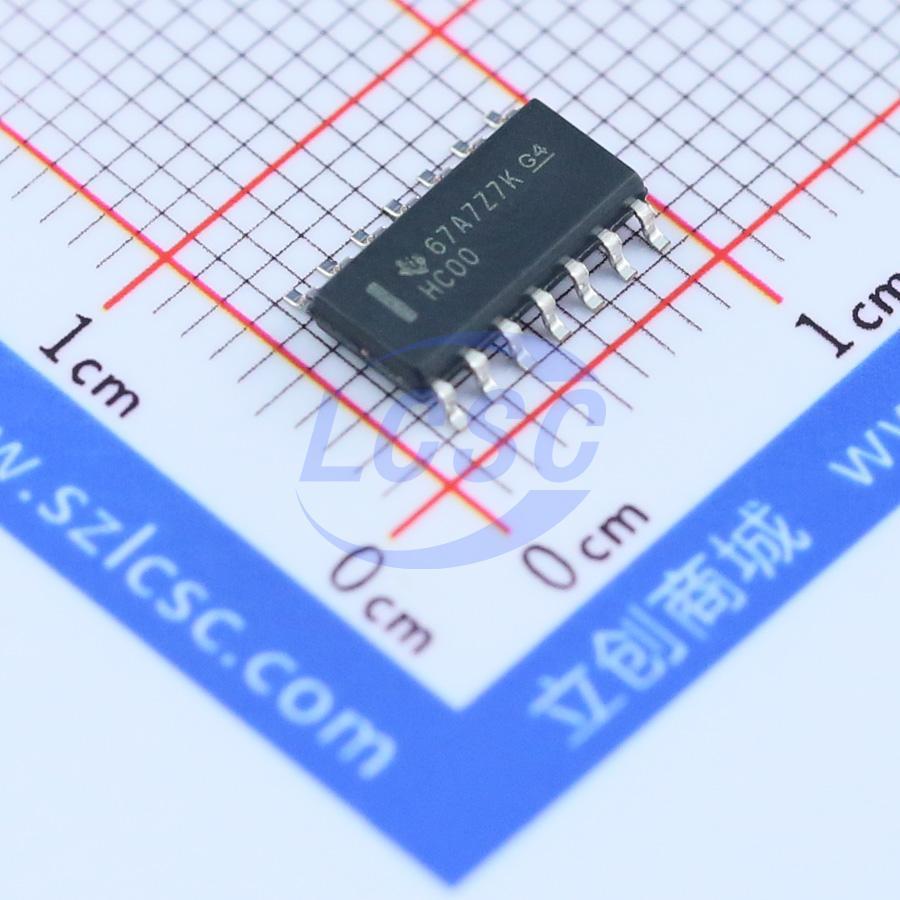

SN74HC00DR
2uA 2V~6V 15ns@6V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HC00DR
- Store part #
- C10090
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86,065 in stock
#C10090
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.64 | ₹83.20 |
| 50+ | ₹13.24 | ₹662.00 |
| 150+ | ₹11.54 | ₹1,731.00 |
| 500+ | ₹10.27 | ₹5,135.00 |
| 2,500+ | ₹8.23 | ₹20,575.00 |
| 5,000+ | ₹7.71 | ₹38,550.00 |
5 × ₹16.64
₹83.20
excl. GST
₹98.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC00DR
₹83.20 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 15ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.291 g
Overview
The 'HC00 devices contain four independent 2-input NAND gates. They perform the Boolean function Y = A(overline) • B(overline) or Y = A(overline) + B(overline) in positive logic.
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 - μA Max Icc
- Typical tpd = 8 ns
- ±4 - mA Output Drive at 5 V
- Low Input Current of 1 μA Max
