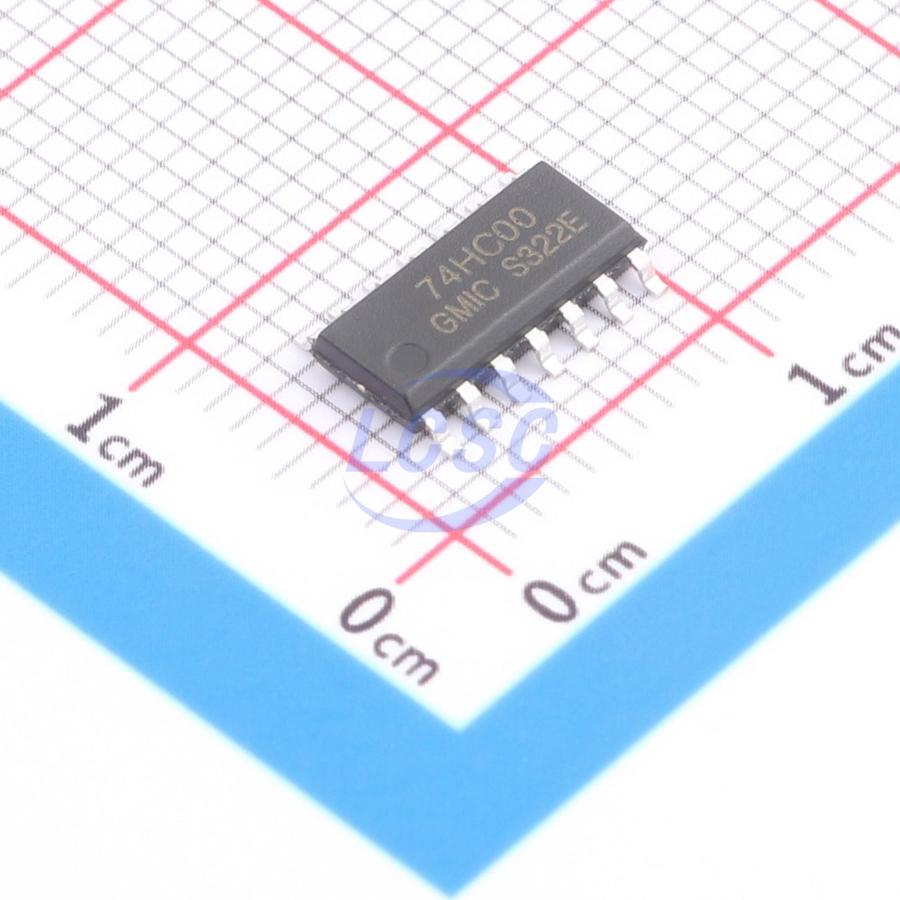

SN74HC00DS
2uA 2V~6V 7ns@6V,50pF SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SN74HC00DS
- Store part #
- C51927312
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,660 in stock
#C51927312
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.18 | ₹91.80 |
| 100+ | ₹7.22 | ₹722.00 |
| 300+ | ₹6.24 | ₹1,872.00 |
| 1,000+ | ₹5.50 | ₹5,500.00 |
| 4,000+ | ₹4.92 | ₹19,680.00 |
| 8,000+ | ₹4.63 | ₹37,040.00 |
10 × ₹9.18
₹91.80
excl. GST
₹108.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC00DS
₹91.80 for 10 + GST
Specifications
- Input Logic Level - High
- 1.2V~3.2V
- Logic Family
- 74HC Series
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 7ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.196 g
Overview
74HC00 is a quad 2-input positive-logic NAND gate device, with logic function Y = A̅ · B̅ or Y = Ā + B̄.
Key features
- Operating voltage range: 2.0V ~ 6.0V
- Low quiescent current: Icc = 2μA (max)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS00DS#C52091992GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 3,665 | ₹20.36 · 3,665 in stock | View |
