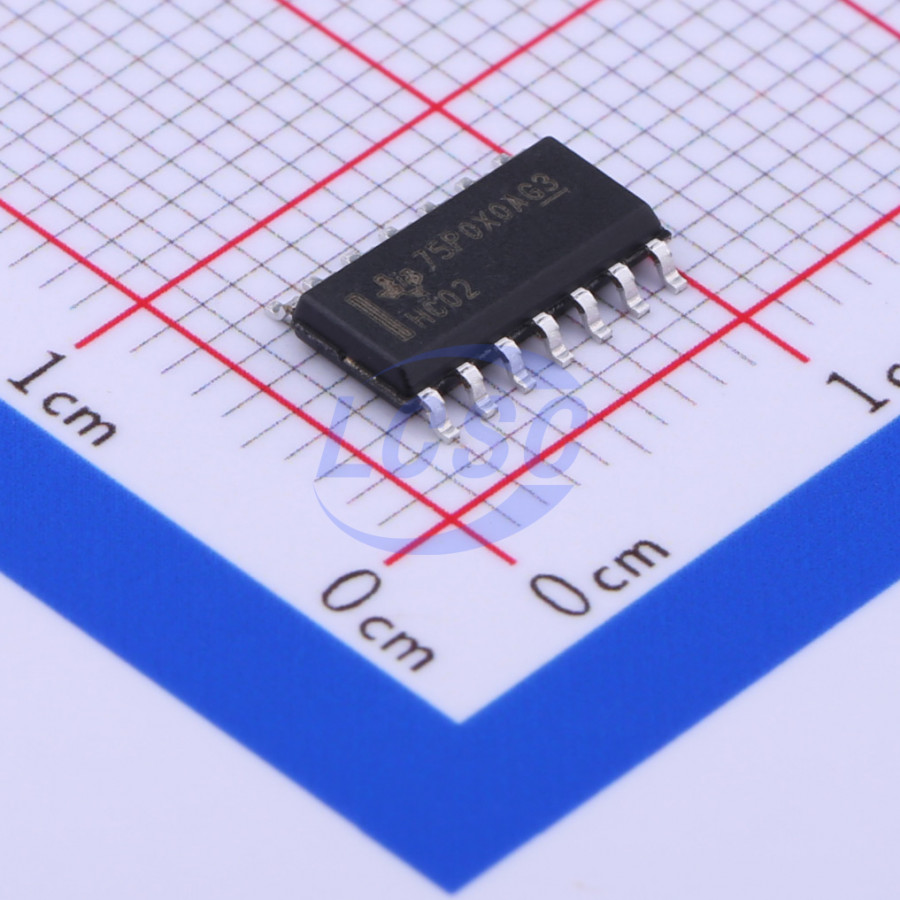

Quadruple 2-Input Positive-NOR Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74HC02DR
- Store part #
- C350559
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,255 in stock
#C350559
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.08 | ₹145.40 |
| 50+ | ₹23.27 | ₹1,163.50 |
| 150+ | ₹20.78 | ₹3,117.00 |
| 500+ | ₹17.68 | ₹8,840.00 |
| 2,500+ | ₹14.98 | ₹37,450.00 |
| 5,000+ | ₹14.14 | ₹70,700.00 |
5 × ₹29.08
₹145.40
excl. GST
₹171.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC02DR
₹145.40 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 15ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
The SNx4HC02 devices contain four independent 2-input NOR gates. They perform the Boolean function Y'(overline) = A + B(overline) or Y = A(overline) · B(overline) in positive logic.
Applications
- Education
- Toys
- Musical Instruments
- Medical Healthcare and Fitness
- Grid Infrastructure
- Electronic Point of Sale
- Test and Measurement
- Factory Automation and Control
- Building Automation
- RS Latch Falling Edge Detector
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption: Maximum 20 μA
- Typical tpd = 8 ns
- ±4 mA Output Drive at 5 V
- Low Input Current of 1 μA Maximum
