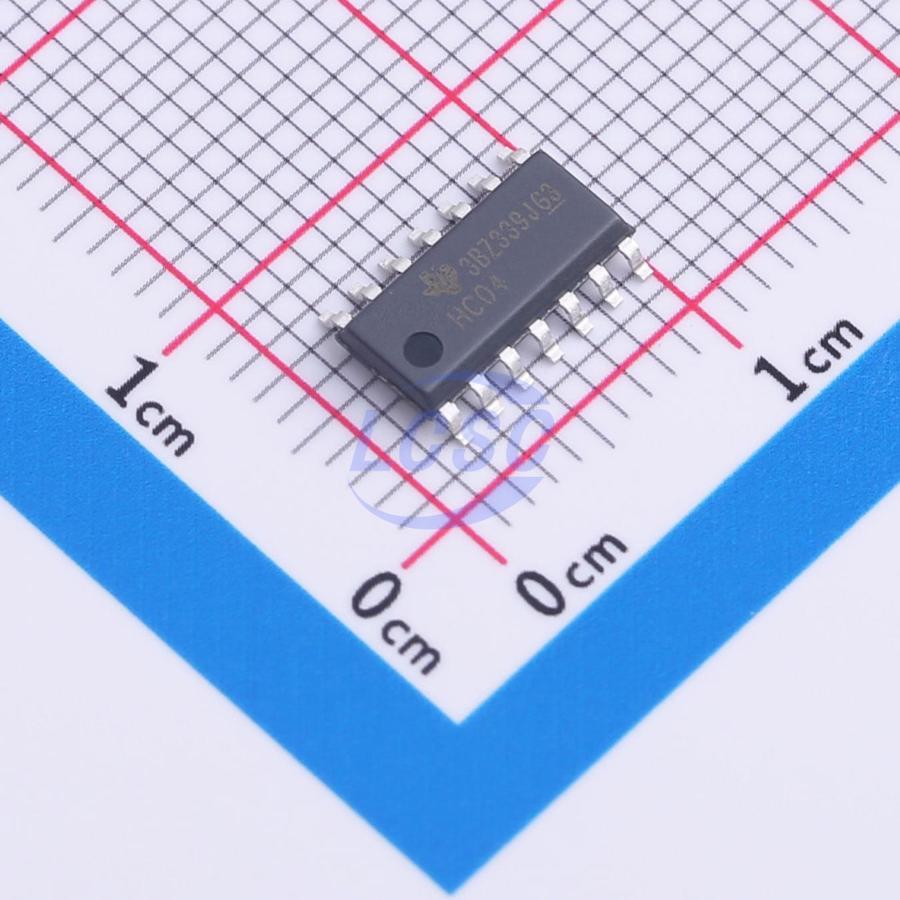

SN74HC04DR
2V~6V 16ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
HEX INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HC04DR
- Store part #
- C6811
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61,755 in stock
#C6811
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.60 | ₹118.00 |
| 50+ | ₹18.72 | ₹936.00 |
| 150+ | ₹16.62 | ₹2,493.00 |
| 500+ | ₹14.01 | ₹7,005.00 |
| 2,500+ | ₹11.29 | ₹28,225.00 |
| 5,000+ | ₹10.58 | ₹52,900.00 |
5 × ₹23.60
₹118.00
excl. GST
₹139.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC04DR
₹118.00 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 16ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The HC04 device contains six independent inverters that implement the Boolean function Y = NOT A in positive logic. The SN54HC04 is available in J, W, or FK packages, and the SN74HC04 is available in D, DB, N, NS, or PW packages; NC indicates no internal connection.
Key features
- Operating voltage range: 2 V to 6 V
- Output drives up to 10 LSTTL loads
- Low power consumption, Icc max 20 μA
- Typical tpd of 8 ns
- Output drive capability ±4 mA at 5 V
- Maximum input current 1 μA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG74HC04M/TR#C19193433HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,165 | ₹12.93 · 2,165 in stock | View |
 | AiP74HC04SA14.TR#C51940056Wuxi I-core Elec · SOP-14 | Wuxi I-core Elec | SOP-14 | 1,670 | ₹16.60 · 1,670 in stock | View |
 | SN74HC04DTR#C52711698XBLW · SOP-14 | XBLW | SOP-14 | 2,210 | ₹15.43 · 2,210 in stock | View |
 | 74HC04DM/TR#C7432192HGSEMI · SOP-14 | HGSEMI | SOP-14 | 40 | ₹15.48 · 40 in stock | View |
 | SN74HC04DS#C51927313GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | On request | ₹8.08 · 0 in stock | View |
