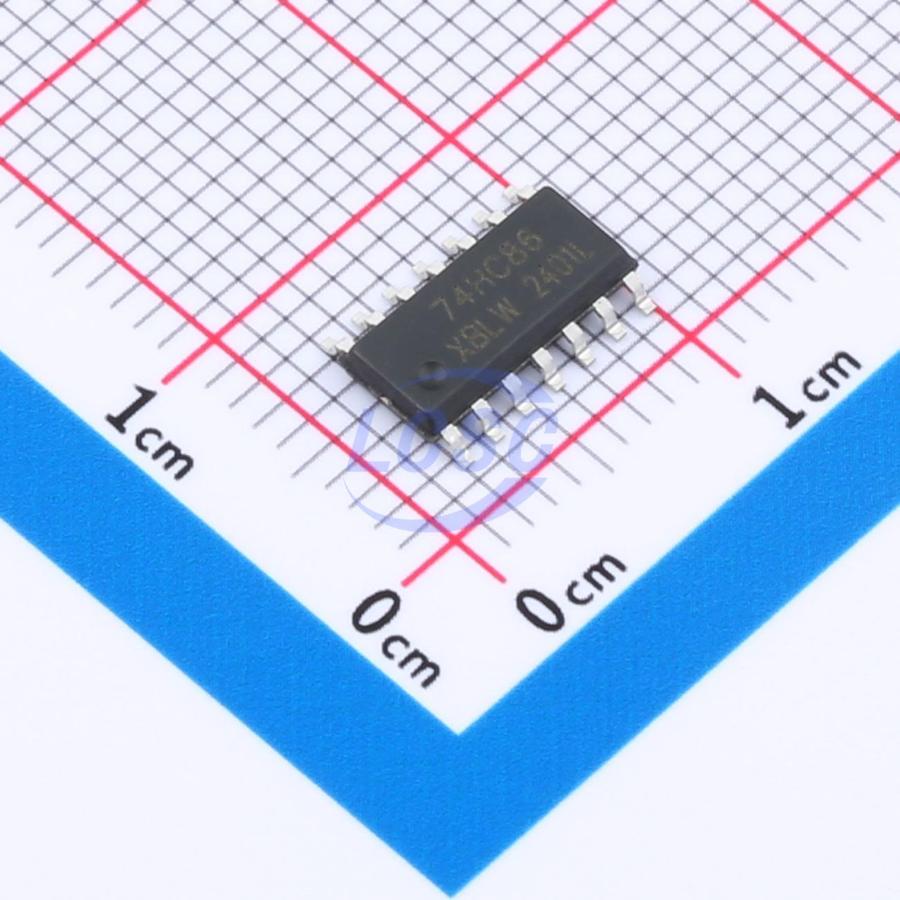

SN74HC86DTR(XBLW)
2V~6V 11ns 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad 2-input Exclusive-or Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74HC86DTR(XBLW)
- Store part #
- C22357881
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C22357881
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.91 | ₹74.55 |
| 50+ | ₹11.79 | ₹589.50 |
| 150+ | ₹10.23 | ₹1,534.50 |
| 500+ | ₹9.06 | ₹4,530.00 |
| 2,500+ | ₹8.12 | ₹20,300.00 |
| 5,000+ | ₹7.65 | ₹38,250.00 |
5 × ₹14.91
₹74.55
excl. GST
₹87.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC86DTR(XBLW)
₹74.55 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 11ns
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 4.32V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.259 g
Overview
The SN74HC86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Detect phase differences in input signals
- Create a selectable inverter / buffer
Key features
- Buffered inputs
- Wide operating voltage range: 2 V to 6 V
- Specified from -40℃ to +125℃
- Packaging information: DIP-14/SOP-14/TSSOP-14
