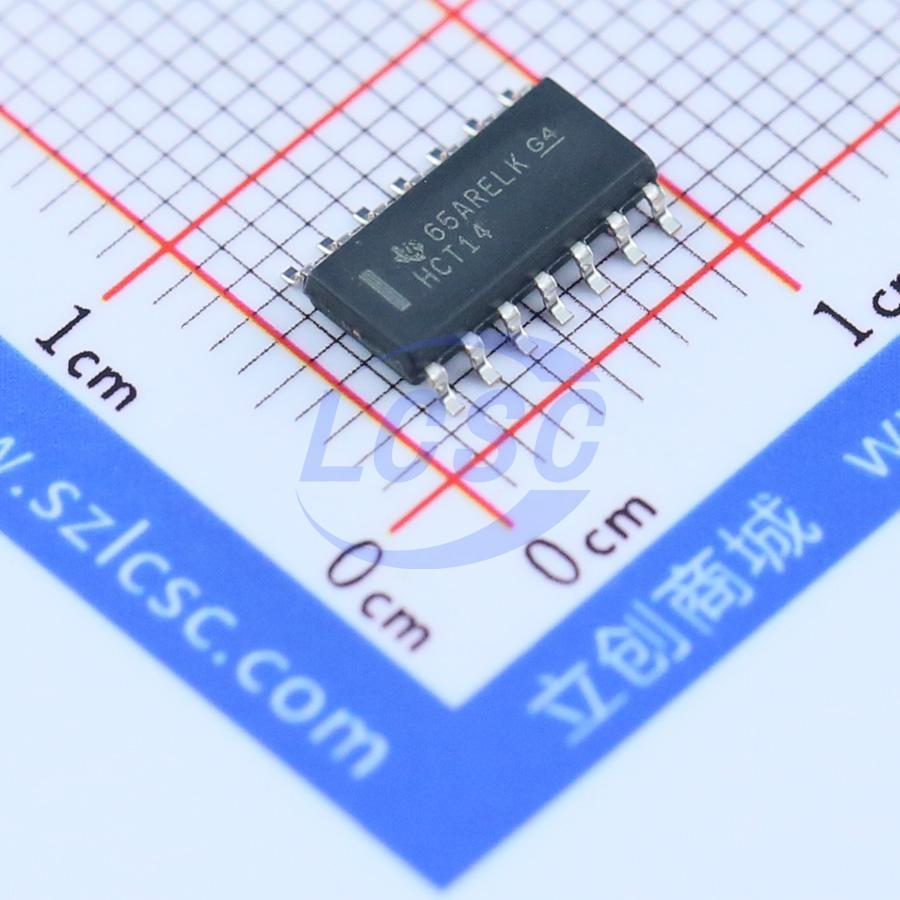

SN74HCT14DR
Schmitt trigger 4.5V~5.5V 30ns@5.5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
HEX SCHMITT-TRIGGER INVERTERS
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT14DR
- Store part #
- C6769
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,302 in stock
#C6769
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.45 | ₹92.45 |
| 10+ | ₹76.14 | ₹761.40 |
| 30+ | ₹69.18 | ₹2,075.40 |
| 100+ | ₹60.47 | ₹6,047.00 |
| 500+ | ₹56.56 | ₹28,280.00 |
| 1,000+ | ₹54.16 | ₹54,160.00 |
1 × ₹92.45
₹92.45
excl. GST
₹109.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCT14DR
₹92.45 for 1 + GST
Specifications
- Logic Family
- 74HCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 30ns@5.5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV~600mV
- Input Logic Level - High
- 1.9V~2.1V
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The 'HCT14 devices contain six independent inverters. The devices perform the Boolean function Y = A(overline) in positive logic.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 μA Max Icc
- Typical tpd = 18 ns
- ±4 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL-Voltage Compatible
