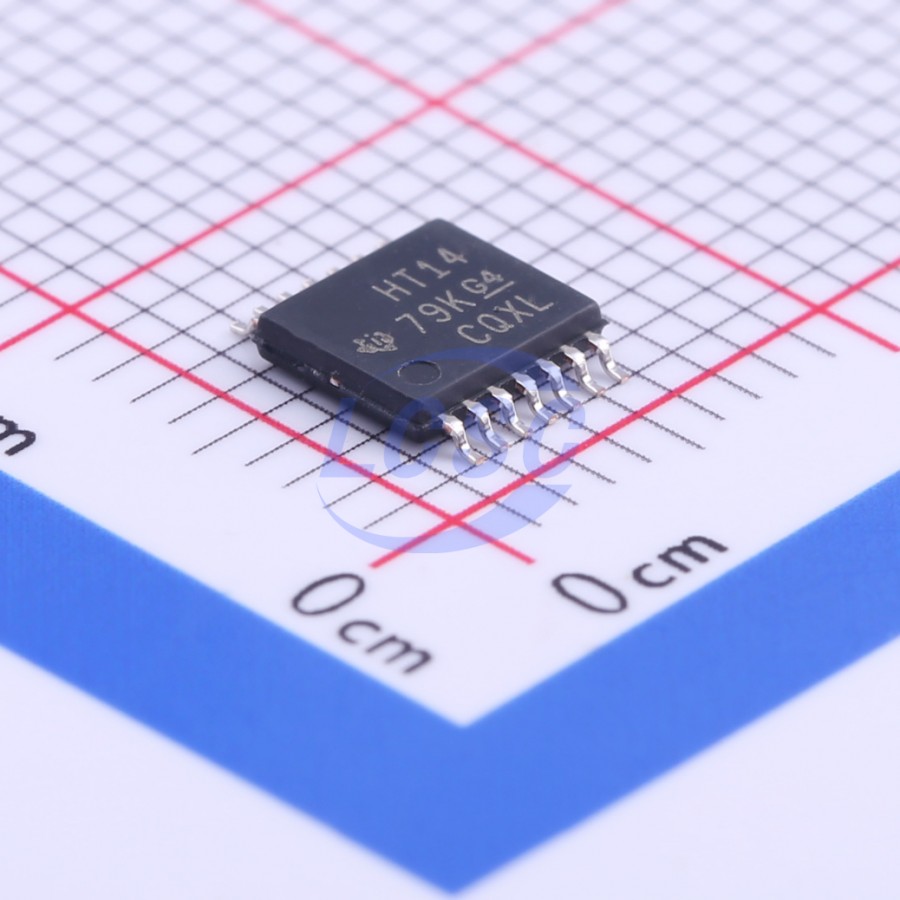

SN74HCT14PWR
Schmitt trigger 4.5V~5.5V 30ns@5.5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT14PWR
- Store part #
- C133639
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C133639
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹67.33 | ₹336.65 |
| 50+ | ₹53.26 | ₹2,663.00 |
| 150+ | ₹47.24 | ₹7,086.00 |
| 500+ | ₹39.73 | ₹19,865.00 |
| 2,000+ | ₹33.52 | ₹67,040.00 |
| 4,000+ | ₹31.51 | ₹1,26,040.00 |
5 × ₹67.33
₹336.65
excl. GST
₹397.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT14PWR
₹336.65 for 5 + GST
Specifications
- Logic Family
- 74HCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 170mV~330mV
- Propagation Delay
- 30ns@5.5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV~600mV
- Input Logic Level - High
- 1.9V~2.1V
- Output Logic Level - High
- 3.98V~4.3V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The SNx4HCT14 devices contain six independent inverters. The devices perform the Boolean function Y = A̅ in positive logic.
Applications
- UPS
- White Goods
- Computer Peripherals
- Printers
- AC Servo Drives
- Desktop Computers
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption: 20 μA Maximum ICC
- Typical tpd = 18 ns
- ±4 mA Output Drive at 5 V
- Maximum Low Input Current of 1 μA Maximum
- Inputs Are TTL-Voltage Compatible
