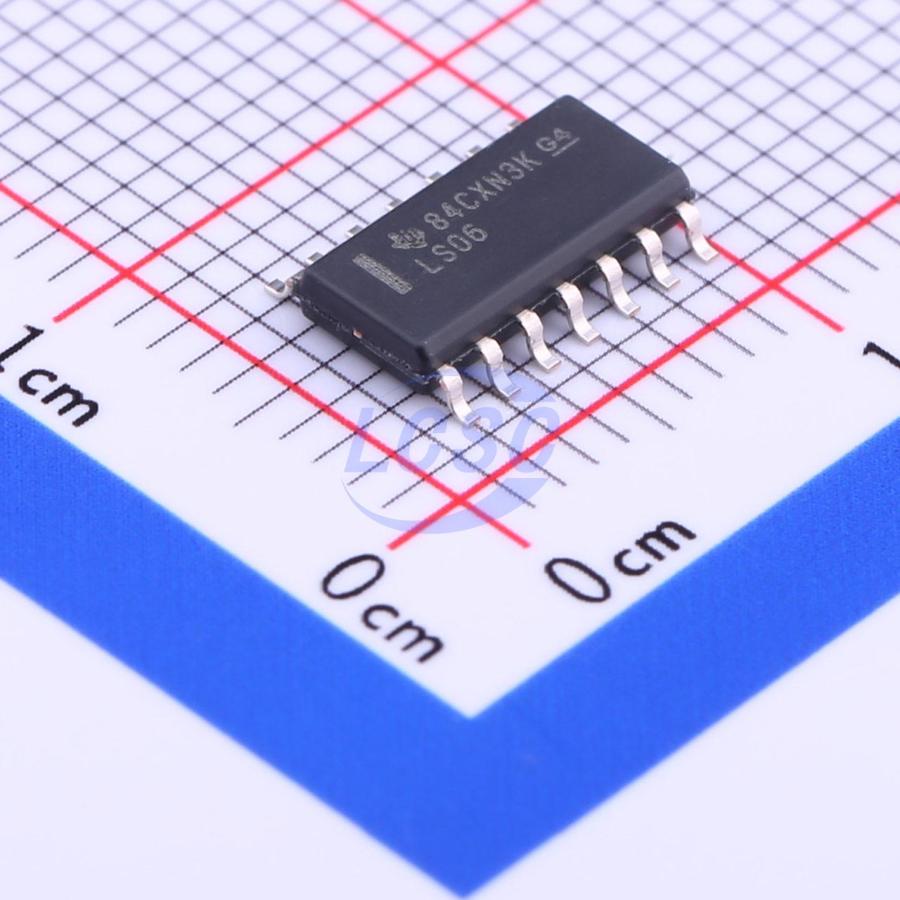

SN74LS06DR

4.75V~5.25V 20ns@5V,15pF 6 SOIC-14 Gates and Inverters RoHS

SOIC-14ROHS3 CompliantActive

Hex Inverter Buffers and Drivers With Open-Collector High-Voltage Outputs

Manufacturer: TI
Manufacturer part #: SN74LS06DR
Store part #: C113682
Package / case: SOIC-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,815 in stock

#C113682

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹58.53	₹292.65
50+	₹46.29	₹2,314.50
150+	₹41.04	₹6,156.00
500+	₹31.26	₹15,630.00
2,500+	₹28.34	₹70,850.00
5,000+	₹26.59	₹1,32,950.00

Quantity (min 5, multiples of 5)

5 × ₹58.53

₹292.65

excl. GST

₹345.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74LS06DR

₹292.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LS
Voltage - Supply: 4.75V~5.25V
Output Logic Level - Low: 700mV
Propagation Delay: 20ns@5V,15pF
Input Logic Level - High: 2V
Input Logic Level - Low: 800mV
Operating Temperature: 0℃~+70℃
Output Logic Level - High: 30V
Current - Output High(IOH): 250uA
Number of Channels: 6
Current - Output Low(IOL): 40mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.264 g

Overview

The SNx4LS06 devices feature high- voltage, open- collector outputs to interface with high- level circuits (such as MOS), or for driving high- current loads, and also are characterized for use as inverter buffers for driving TTL inputs. The SNx4LS06 devices have a rated output voltage of 30V

Applications

Factory Automation
Building Automation
Line Drivers
Electronic Point of Sale
Desktop or Notebook PCs

Key features

Convert TTL Voltage Levels to MOS Levels
High Sink-Current Capability
Input Clamping Diodes Simplify System Design
Open-Collector Driver for Indicator Lamps and Relays
Inputs Fully Compatible With Most TTL Circuits
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
