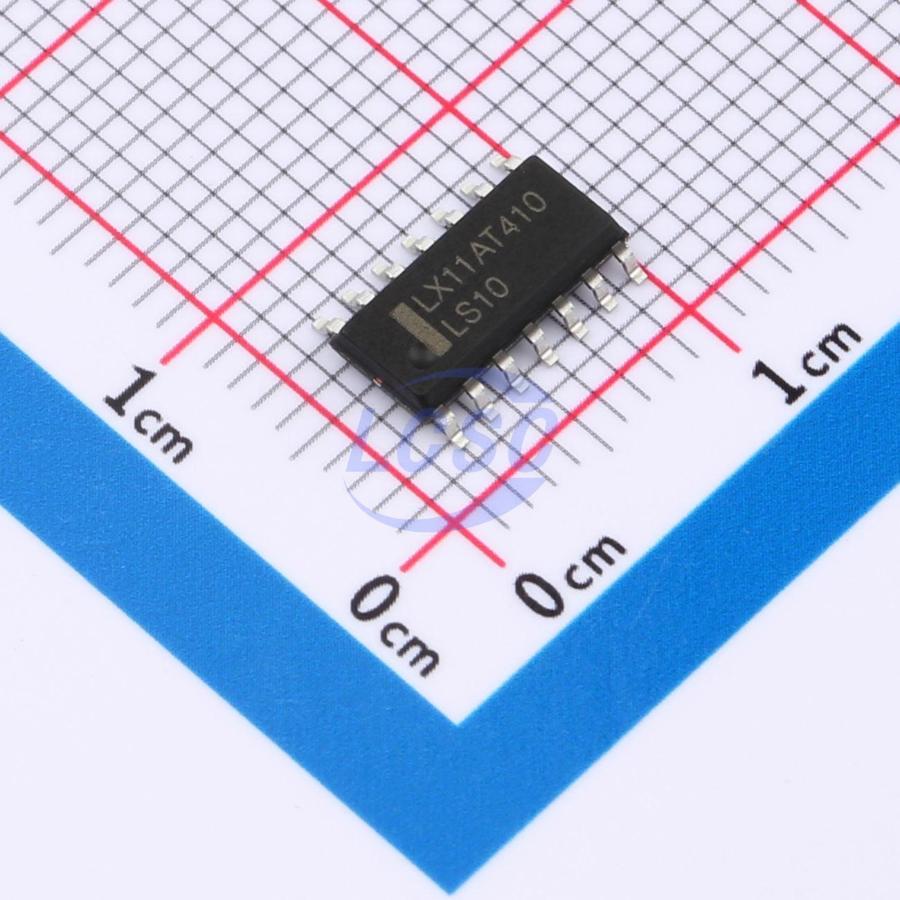

SN74LS10DR(LX)
NAND Gate IC 3 Channel SOP-14
SOP-14RoHSActive
Triple 3-input NAND gate
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS10DR(LX)
- Store part #
- C22384803
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,795 in stock
#C22384803
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.71 | ₹98.55 |
| 50+ | ₹17.03 | ₹851.50 |
| 150+ | ₹15.88 | ₹2,382.00 |
| 500+ | ₹14.45 | ₹7,225.00 |
| 2,500+ | ₹13.81 | ₹34,525.00 |
| 5,000+ | ₹13.43 | ₹67,150.00 |
5 × ₹19.71
₹98.55
excl. GST
₹116.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS10DR(LX)
₹98.55 for 5 + GST
Specifications
- Logic Family
- 74LS Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV;160mV~260mV
- Propagation Delay
- 16ns@6V
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5.48V~5.81V;5.9V~6V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.249 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC10DR(LX)#C22436982lingxingic · SOP-14 | lingxingic | SOP-14 | 850 | ₹18.16 · 850 in stock | View |
