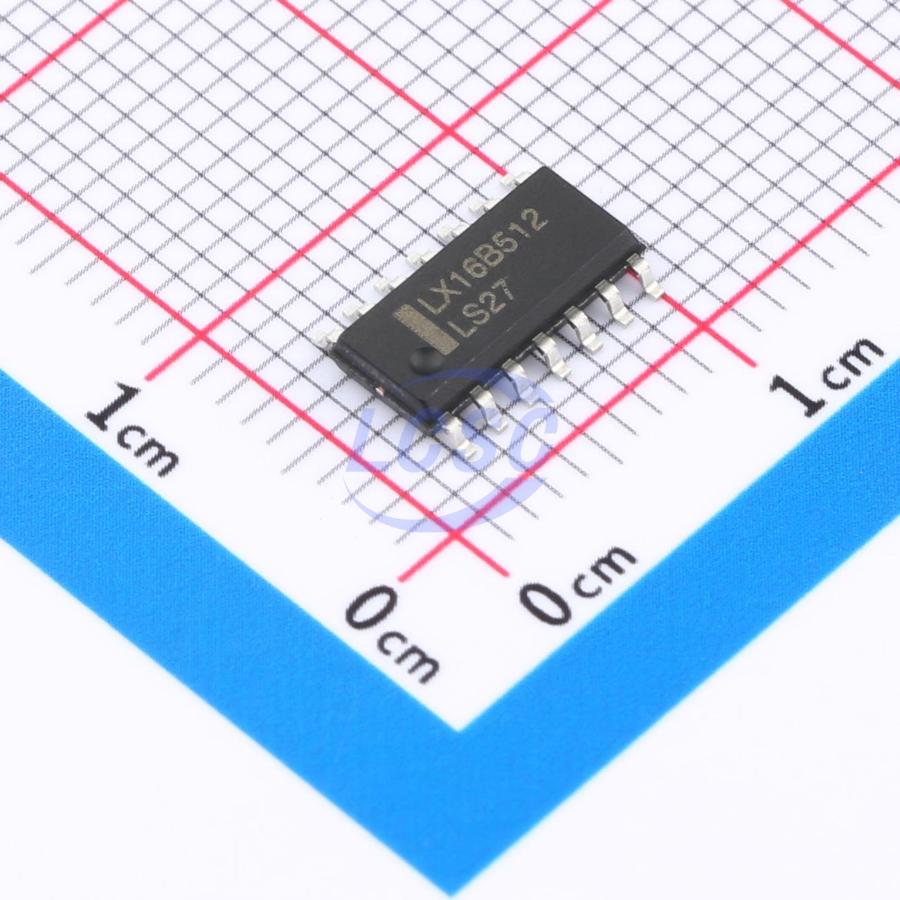

SN74LS27DR(LX)
2uA 2V~6V 10ns@4.5V,15pF SOP-14 Gates and Inverters
SOP-14RoHSActive
Triple 3-input Nor Gate
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LS27DR(LX)
- Store part #
- C48533480
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C48533480
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.27 | ₹126.35 |
| 50+ | ₹19.85 | ₹992.50 |
| 150+ | ₹17.52 | ₹2,628.00 |
| 500+ | ₹14.62 | ₹7,310.00 |
| 2,500+ | ₹13.32 | ₹33,300.00 |
| 5,000+ | ₹12.56 | ₹62,800.00 |
5 × ₹25.27
₹126.35
excl. GST
₹149.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS27DR(LX)
₹126.35 for 5 + GST
Specifications
- Logic Family
- 74LS
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 3;3
- Propagation Delay
- 10ns@4.5V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.314 g
Overview
SN74LS27 is a triple 3-input NOR gate. The inputs include clamp diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Operating temperature range: -40°C ~ +125°C
- Package: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC27DR(LX)#C24833612lingxingic · SOP-14 | lingxingic | SOP-14 | 3,485 | ₹20.36 · 3,485 in stock | View |
