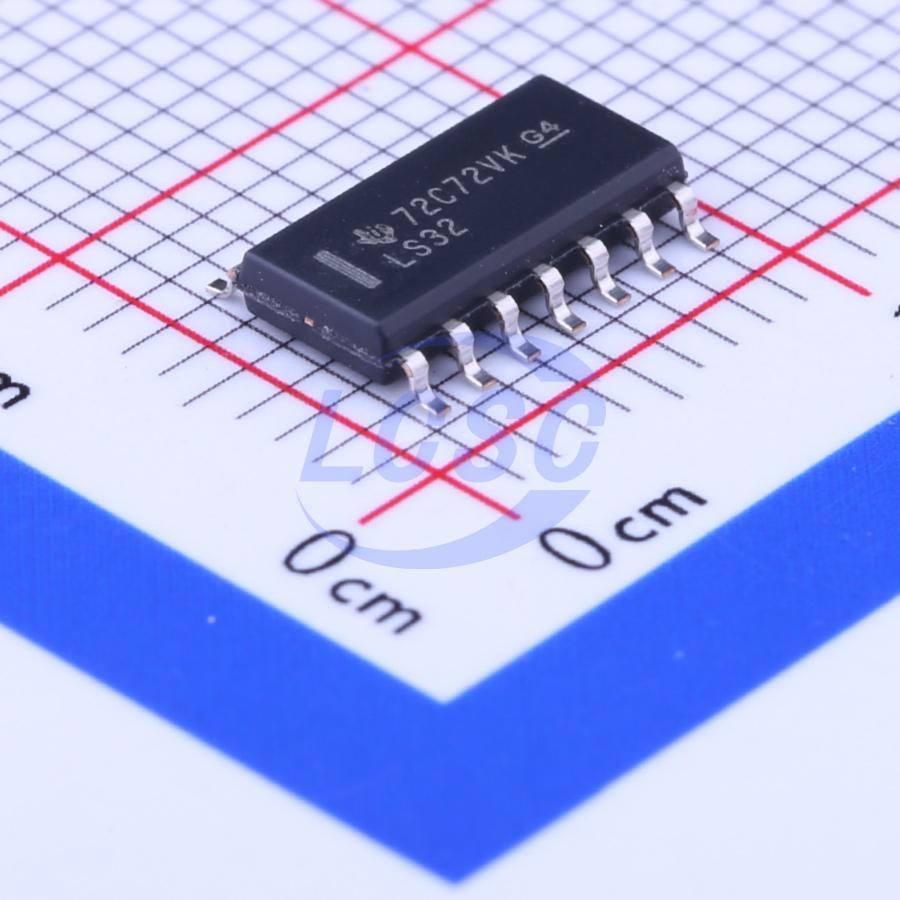

SN74LS32DR
4.75V~5.25V 22ns@5V,15pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74LS32DR
- Store part #
- C116812
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,263 in stock
#C116812
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.23 | ₹62.23 |
| 10+ | ₹49.44 | ₹494.40 |
| 30+ | ₹43.37 | ₹1,301.10 |
| 100+ | ₹37.73 | ₹3,773.00 |
| 500+ | ₹36.21 | ₹18,105.00 |
| 1,000+ | ₹35.35 | ₹35,350.00 |
1 × ₹62.23
₹62.23
excl. GST
₹73.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS32DR
₹62.23 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- 0℃~+70℃
- Logic Family
- 74LS Series
- Output Logic Level - High
- 2.7V~3.4V
- Voltage - Supply
- 4.75V~5.25V
- Current - Output High(IOH)
- 400uA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 500mV
- Propagation Delay
- 22ns@5V,15pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
These devices contain four independent 2- input OR gates. The SN5432, SN54LS32 and SN54S32 are characterized for operation over the full range of - 55℃ to 125℃. The SN7432, SN74LS32 and SN74S32 are characterized for operation from 0℃ to 70℃.
Key features
- Package options: plastic small-outline, ceramic chip carrier, flat package, plastic DIP, ceramic DIP
- SN5432, SN54LS32, SN54S32 operating temperature range: -55℃~125℃
- SN7432, SN74LS32, SN74S32 operating temperature range: 0℃~70℃
- Supply voltage VCC maximum: 7V
- Storage temperature range: -65℃~150℃
- Typical parameter test conditions: VCC = 5V, ambient temperature TA = 25℃
- Only one output may be shorted at a time; short-circuit duration must not exceed 1 second
- '32 and 'S32 maximum input voltage: 5.5V; LS32 maximum input voltage: 7V
