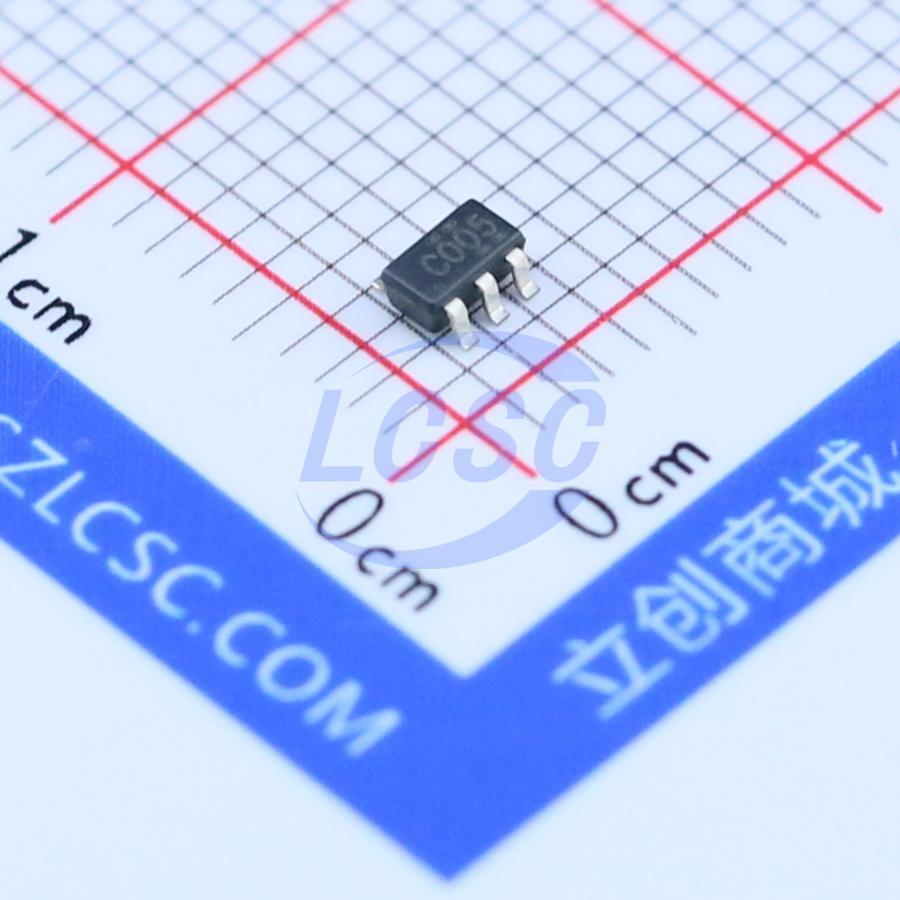

SN74LVC1G00DBVR

1.65V~5.5V 4.3ns@5V,50pF 10uA SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Single 2-Input Positive-NAND Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G00DBVR
Store part #: C7826
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,655 in stock

#C7826

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.34	₹81.70
50+	₹13.63	₹681.50
150+	₹12.28	₹1,842.00
500+	₹11.26	₹5,630.00
3,000+	₹10.45	₹31,350.00
6,000+	₹10.04	₹60,240.00

Quantity (min 5, multiples of 5)

5 × ₹16.34

₹81.70

excl. GST

₹96.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G00DBVR

₹81.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 4.3ns@5V,50pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

This single 2- input positive- NAND gate is designed for 1.65- V to 5.5- V VCC operation. The SN74LVC1G00 performs the Boolean function Y = (A x B)(overline) or Y = A(overline) + B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G00 is available in a variety of packages, including the ultra- small DPW package with a body size of 0.8 mm x 0.8 mm.

Applications

AV Receiver
Audio Dock: Portable
Blu- ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
Solid State Drive (GSD): Client and Enterprise
TV: LCD/Digital and High- Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in the Ultra Small 0.64- mm² Package (DPW) With 0.5- mm Pitch
Supports 5- V VCC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to VCC
Max tpd of 3.8 ns at 3.3 V
Low Power Consumption, 10- μA Max ICC
±24- mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial- Power- Down Mode, and Back Drive Protection
Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000- V Human- Body Model (A114- A)
1000- V Charged- Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LVC1G00DBVT#C2871132TI · SOT-23-5	TI	SOT-23-5	159	₹81.40 · 159 in stock	View
SN74LVC1G00DB(LX)#C22384790lingxingic · SOT-23-5	lingxingic	SOT-23-5	900	₹4.99 · 900 in stock	View
74LVC1G00M5/TR#C3007926HGSEMI · SOT-23-5	HGSEMI	SOT-23-5	2,450	₹6.69 · 2,450 in stock	View
SN74LVC1G00T235(XBLW)#C41408431XBLW · SOT-23-5	XBLW	SOT-23-5	1,640	₹5.34 · 1,640 in stock	View
TP74LVC1G00S5#C42460123TECH PUBLIC · SOT-23-5	TECH PUBLIC	SOT-23-5	2,930	₹7.12 · 2,930 in stock	View
