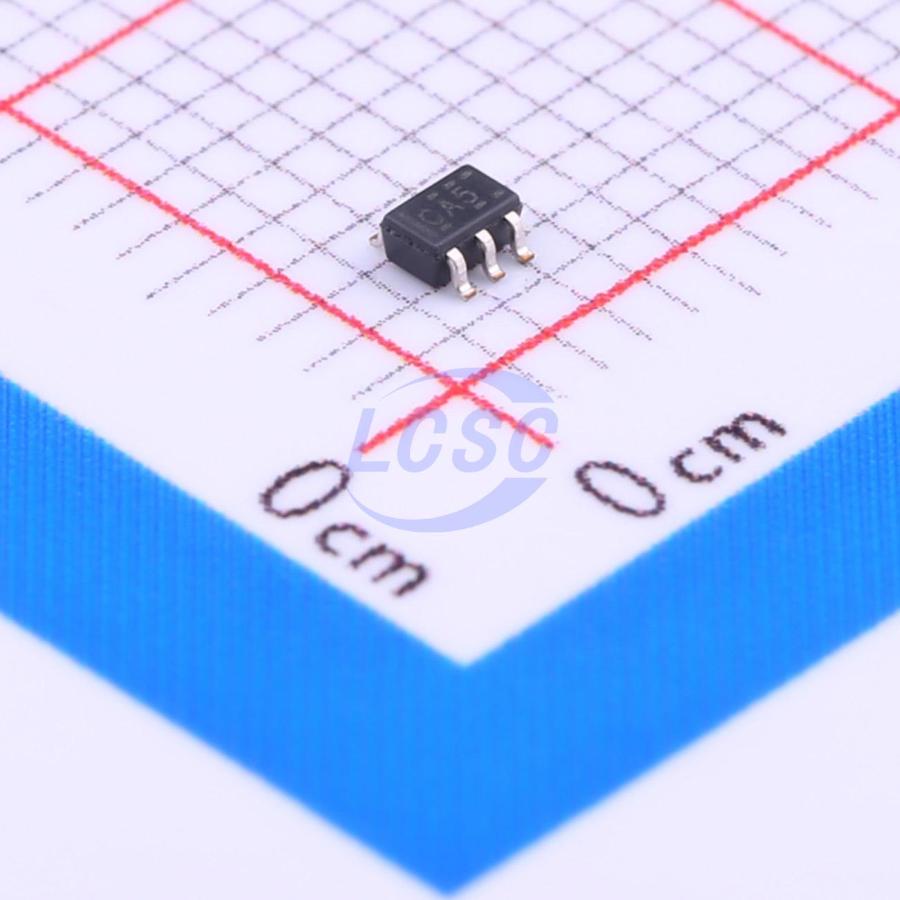

SN74LVC1G00DCKR

1.65V~5.5V 4.3ns@5V,50pF 10uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

Single 2-Input Positive-NAND Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G00DCKR
Store part #: C8185
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,07,140 in stock

#C8185

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹8.26	₹82.60
100+	₹6.68	₹668.00
300+	₹5.89	₹1,767.00
3,000+	₹5.00	₹15,000.00
6,000+	₹4.52	₹27,120.00
9,000+	₹4.29	₹38,610.00

Quantity (min 10, multiples of 10)

10 × ₹8.26

₹82.60

excl. GST

₹97.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G00DCKR

₹82.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 4.3ns@5V,50pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.081 g

Overview

This single 2- input positive- NAND gate is designed for 1.65- V to 5.5- V VCC operation. The SN74LVC1G00 performs the Boolean function Y = (A x B)(overline) or Y = A(overline) + B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G00 is available in a variety of packages, including the ultra- small DPW package with a body size of 0.8 mm x 0.8 mm.

Applications

AV Receiver
Audio Dock: Portable
Blu- ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
Solid State Drive (GSD): Client and Enterprise
TV: LCD/Digital and High- Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in the Ultra Small 0.64- mm² Package (DPW) With 0.5- mm Pitch
Supports 5- V VCC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to VCC
Max tpd of 3.8 ns at 3.3 V
Low Power Consumption, 10- μA Max ICC
±24- mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial- Power- Down Mode, and Back Drive Protection
Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000- V Human- Body Model (A114- A)
1000- V Charged- Device Model (C101)
