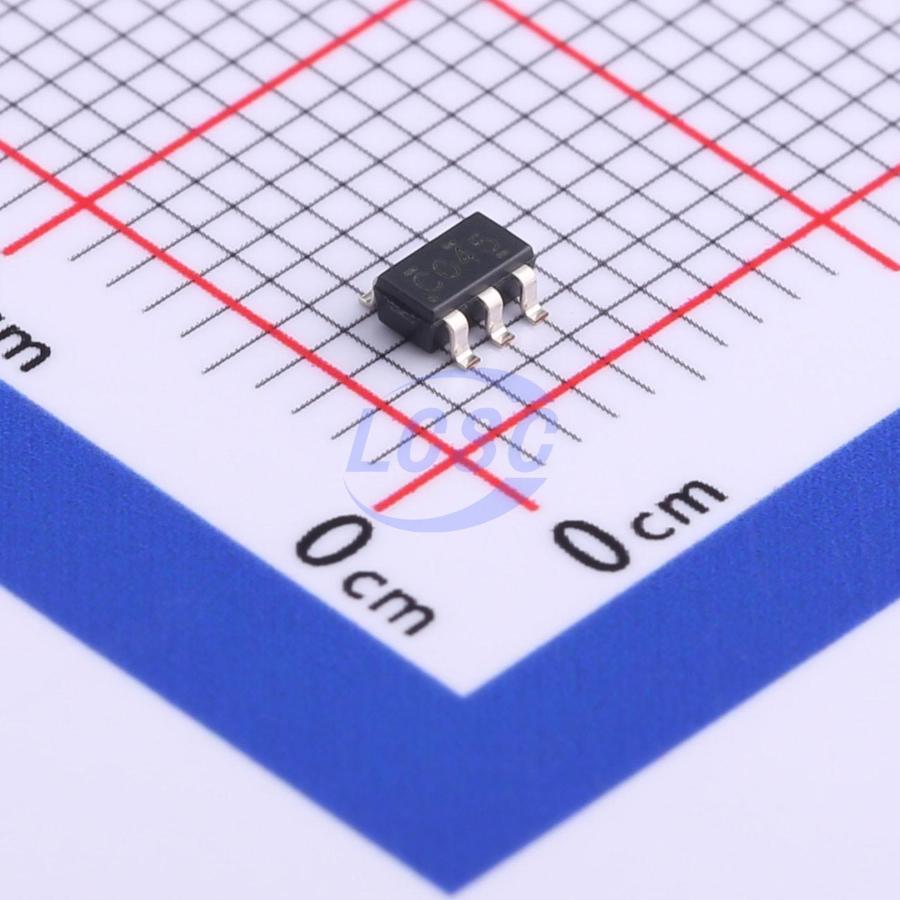

SN74LVC1G04DBVR

1.65V~5.5V 3.7ns@5V,50pF 10uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Single Inverter Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G04DBVR
Store part #: C7827
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,25,730 in stock

#C7827

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.85	₹54.25
50+	₹8.61	₹430.50
150+	₹7.50	₹1,125.00
500+	₹6.67	₹3,335.00
3,000+	₹5.99	₹17,970.00
6,000+	₹5.66	₹33,960.00

Quantity (min 5, multiples of 5)

5 × ₹10.85

₹54.25

excl. GST

₹64.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G04DBVR

₹54.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 400mV
Propagation Delay: 3.7ns@5V,50pF
Features: Power shutdown protection
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 2.4V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

This single inverter gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G04 device performs the Boolean function Y = A(overline). The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G04 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm x 0.8 mm.

Applications

AV Receiver
Audio Dock: Portable
Blu-ray Player and Home Theater
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard, and Mouse

Key features

Available in the Ultra-Small 0.64-mm² Package (DPW) with 0.5-mm Pitch
Supports 5-V VCC Operation
Inputs Accept Voltages up to 5.5 V Allowing Down Translation to VCC
Max Ipd of 3.3 ns at 3.3-V
Low Power Consumption, 10-μA Max ICC
±24-mA Output Drive at 3.3-V
Ioff Supports Live-Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
