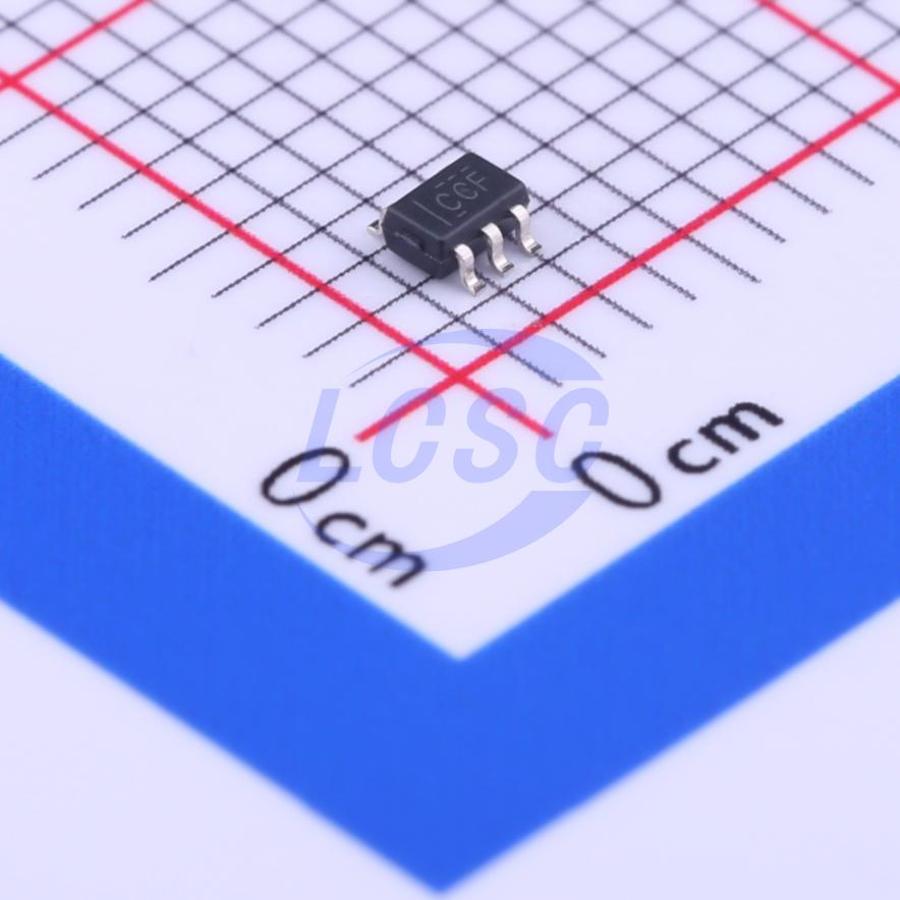

SN74LVC1G04DCKR
1.65V~5.5V 3.7ns@5V,50pF 10uA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G04DCKR
- Store part #
- C8207
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76,400 in stock
#C8207
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.18 | ₹111.80 |
| 100+ | ₹8.86 | ₹886.00 |
| 300+ | ₹7.70 | ₹2,310.00 |
| 3,000+ | ₹6.50 | ₹19,500.00 |
| 6,000+ | ₹5.79 | ₹34,740.00 |
| 9,000+ | ₹5.45 | ₹49,050.00 |
10 × ₹11.18
₹111.80
excl. GST
₹131.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G04DCKR
₹111.80 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.7ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V~2V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
This single inverter gate is designed for 1.65-V to 5.5-V Vcc operation. The SN74LVC1G04 performs the Boolean function Y = A(overline). NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoFree Package
- Supports 5-V VCC Operation
- Inputs Accept Voltages up to 5.5V Allowing Down Translation to Vcc
- Max tpd of 3.3 ns at 3.3 V
- Low Power Consumption, 10-μA Max Icc
- ±24-mA Output Drive at 3.3-V
- Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
