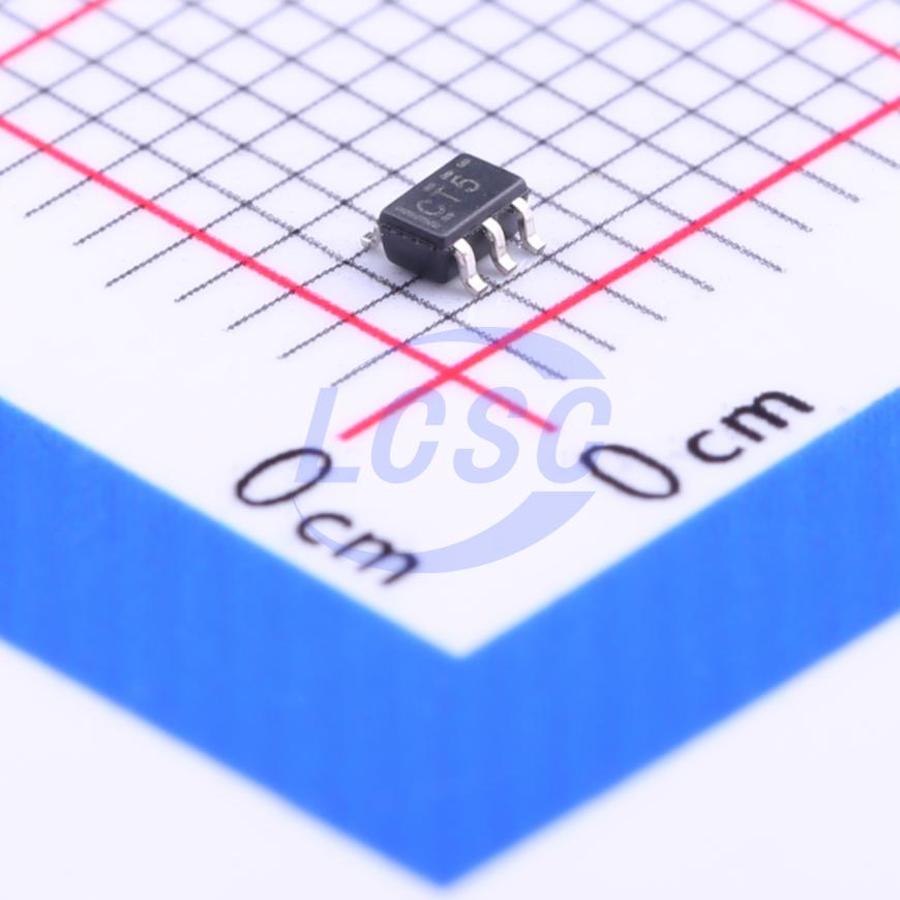

SN74LVC1G06DCKR

Schmitt trigger 1.65V~5.5V 3.5ns@5V,50pF 10uA 1 SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single Inverter Buffer/Driver With Open-Drain Output

Manufacturer: TI
Manufacturer part #: SN74LVC1G06DCKR
Store part #: C7828
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,605 in stock

#C7828

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹22.42	₹112.10
50+	₹18.87	₹943.50
150+	₹17.08	₹2,562.00
500+	₹15.74	₹7,870.00
3,000+	₹14.69	₹44,070.00
6,000+	₹14.14	₹84,840.00

Quantity (min 5, multiples of 5)

5 × ₹22.42

₹112.10

excl. GST

₹132.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G06DCKR

₹112.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 3.5ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - Low: 580mV~1.65V
Input Logic Level - High: 1.07V~3.85V
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

This single inverter buffer/driver is designed for 1.65- V to 5.5- V Vcc operation. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. The output of the SN74LVC1G06 device is open drain and can be connected to other open- drain outputs to implement active- low wired- OR or active- high wired- AND functions. The maximum sink current is 32 mA. This device is fully specified for partial- power- down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

Available in the Texas Instruments NanoFree™ Package
Supports 5- V Vcc Operation
Input and Open- Drain Output Accept Voltages up to 5.5 V
Max tpd of 4 ns at 3.3V
Low Power Consumption, 10- A Max Icc
24- mA Output Drive at 3.3V
Ioff Supports Live Insertion, Partial- PowerDown Mode, and Back- Drive Protection
Latch- Up Performance Exceeds 100 mA Per JESD 78,Class II
Can Be Used For Up or Down Translation
Schmitt Trigger Action on All Ports
ESD Protection Exceeds JESD 22
2000- V Human- Body Model (A114- A)
200- V Machine Model (A115- A)
1000- V Charged- Device Model (C101)
