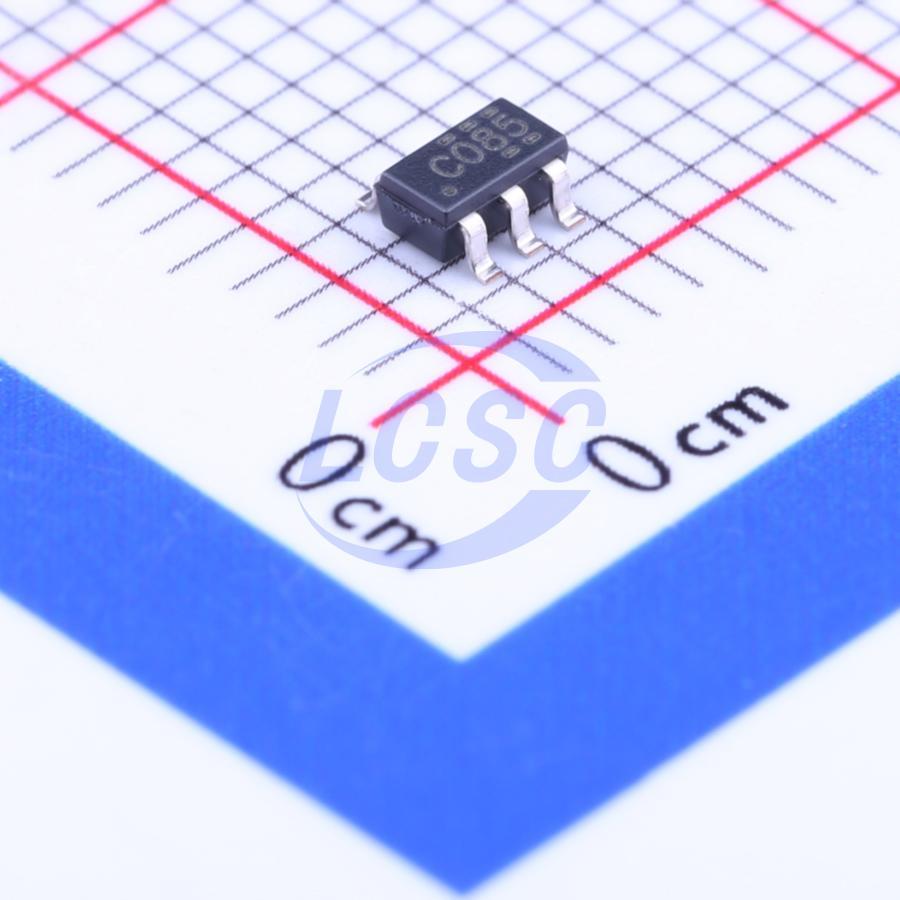

SN74LVC1G08DBVR

1.65V~5.5V 4ns@5V,50pF 10uA SOT-23-5 Gates and Inverters RoHS

PopularSOT-23-5ROHS3 CompliantActive

Single 2-Input Positive-AND Gate

Manufacturer: TI
Manufacturer part #: SN74LVC1G08DBVR
Store part #: C7666
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

79,600 in stock

#C7666

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.11	₹61.10
100+	₹4.88	₹488.00
300+	₹4.26	₹1,278.00
3,000+	₹3.73	₹11,190.00
6,000+	₹3.56	₹21,360.00
9,000+	₹3.44	₹30,960.00

Quantity (min 10, multiples of 10)

10 × ₹6.11

₹61.10

excl. GST

₹72.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G08DBVR

₹61.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;550mV
Propagation Delay: 4ns@5V,50pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - Low: 700mV;800mV
Input Logic Level - High: 1.7V;2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.033 g

Overview

This single 2- input positive- AND gate is designed for 1.65- V to 5.5- V VCC operation. The SN74LVC1G08 device performs the Boolean function or Y = A•B or Y = A(overline) + B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The SN74LVC1G08 is available in a variety of packages, including the ultra- small DPW package with a body size of 0.8mm x 0.8mm

Applications

ATCA Solutions
Active Noise Cancellation (ANC)
Barcode Scanner
Blood Pressure Monitor
CPAP Machine
Cable Solutions
DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
E- Book
Embedded PC
Field Transmitter: Temperature or Pressure Sensor
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network- Attached Storage (NAS)
Server Motherboard and PSU
Software Defined Radio (SDR)
TV: High- Definition (HDTV), LCD, and Digital- Video Communications System
Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
X- ray: Baggage Scanner, Medical, and Dental

Key features

Available in the Ultra Small 0.64- mm² Package (DPW) With 0.5- mm Pitch
Supports 5- V VCC Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to VCC Max tpd of 3.6 ns at 3.3 V
Low Power Consumption, 10- μA Max ICC
±24- mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial- Power- Down Mode, and Back Drive Protection
Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds
JESD 22 - 2000- V Human- Body Model (A114- A)
200- V Machine Model (A115- A)
1000- V Charged- Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
74LVC1G08W5-7#C176929DIODES · SOT-25-5	DIODES	SOT-25-5	1,735	₹11.54 · 1,735 in stock	View
NC7SZ08M5X#C32411onsemi · SOT-23-5	onsemi	SOT-23-5	6,100	₹8.89 · 6,100 in stock	View
74LVC1G08GV-Q100,1#C6708307Nexperia · SC-74A	Nexperia	SC-74A	1,330	₹14.59 · 1,330 in stock	View
74LVC1G08GV,125#C282347Nexperia · SC-74A	Nexperia	SC-74A	9,050	₹20.78 · 9,050 in stock	View
SN74LVC1G08DB(LX)#C22469918lingxingic · SOT-23-5	lingxingic	SOT-23-5	2,990	₹6.22 · 2,990 in stock	View
