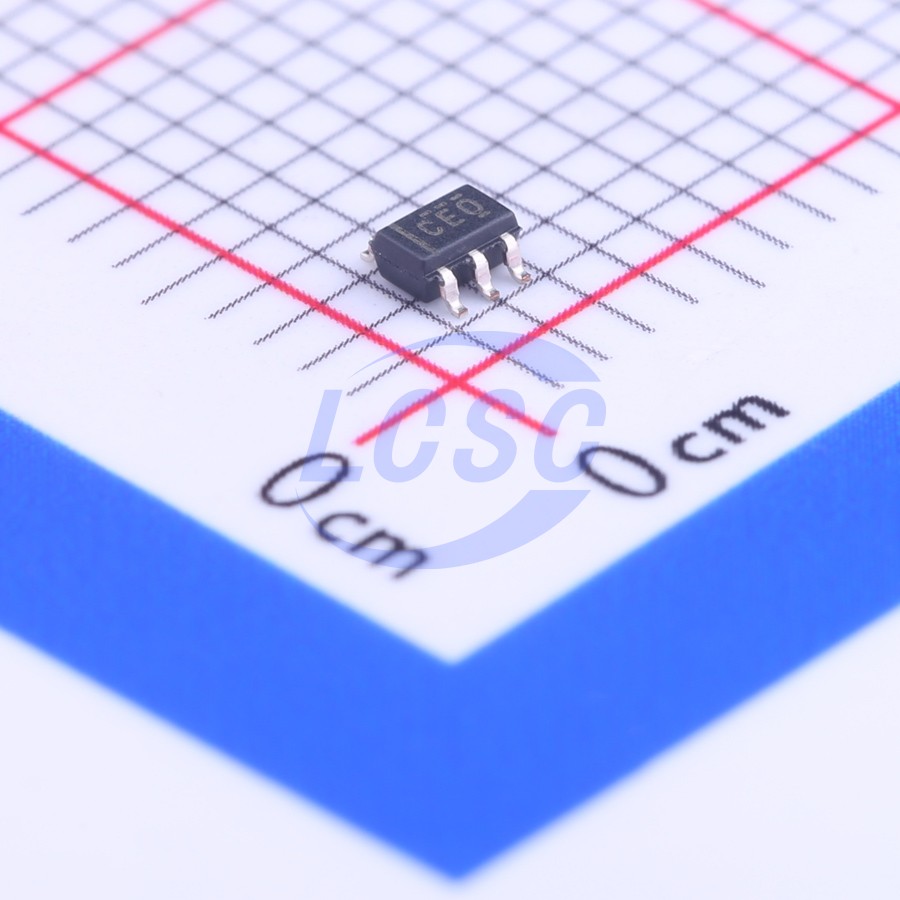

SN74LVC1G08QDCKRQ1
10uA 1.65V~5.5V 3.6ns@3.3V SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS CompliantActive
SINGLE 2-INPUT POSITIVE-AND GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G08QDCKRQ1
- Store part #
- C133548
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,070 in stock
#C133548
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.21 | ₹176.05 |
| 50+ | ₹28.43 | ₹1,421.50 |
| 150+ | ₹25.52 | ₹3,828.00 |
| 500+ | ₹21.90 | ₹10,950.00 |
| 3,000+ | ₹18.47 | ₹55,410.00 |
| 6,000+ | ₹17.50 | ₹1,05,000.00 |
5 × ₹35.21
₹176.05
excl. GST
₹207.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G08QDCKRQ1
₹176.05 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC Series
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 3.6ns@3.3V
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
Overview
The SN74LVC1G08 performs the Boolean function A • B or Y = AB(overline)+(overline) in positive logic. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- Automotive electronics
Key features
- Qualified for Automotive Applications
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 3.6 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
