MSKSEMIDatasheet (PDF)

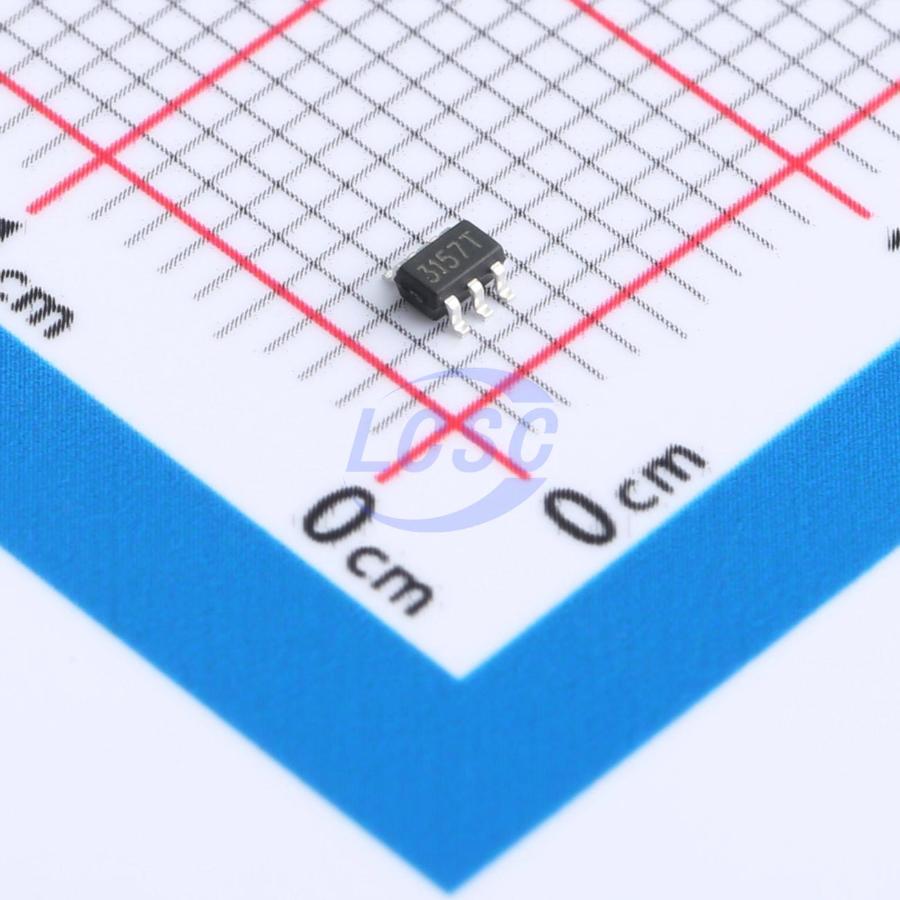

SN74LVC1G3157DCKR-MS
StandardCMOS 1.65V~5.5V 300ps@5.5V,50pF 10uA SC-70-6 Gates and Inverters
SC-70-6RoHSActive
Advanced CMOS Analog Switch
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G3157DCKR-MS
- Store part #
- C7434170
- Package / case
- SC-70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C7434170
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.03 | ₹60.30 |
| 100+ | ₹4.78 | ₹478.00 |
| 300+ | ₹4.15 | ₹1,245.00 |
| 3,000+ | ₹3.68 | ₹11,040.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.11 | ₹27,990.00 |
10 × ₹6.03
₹60.30
excl. GST
₹71.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G3157DCKR-MS
₹60.30 for 10 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 300ps@5.5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 400mV
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - High
- 1.5V;2.4V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;-
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The SN74LVC1G3157XXXX-MS is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. It achieves very low propagation delay while maintaining CMOS low power dissipation. Analog and digital voltages that may vary across the full power−supply range (from VCC to GND). The Select pin has over voltage protection that allows voltages above VCC , up to 7.0 V to be present on the pin without damage or disruption of operation of the part, regardless of the operating voltage.
Key features
- Low power dissipation
- High speed
- Standard CMOS logic levels
- High bandwidth, improved linearity
- Low RDSON
- Break Before Make Circuitry, Prevents Inadvertent Shorts
- Operating temperature -55°C~+125°C
- package: SC70 - 6, DFN1.45×1.0–6, SOT23 - 6
