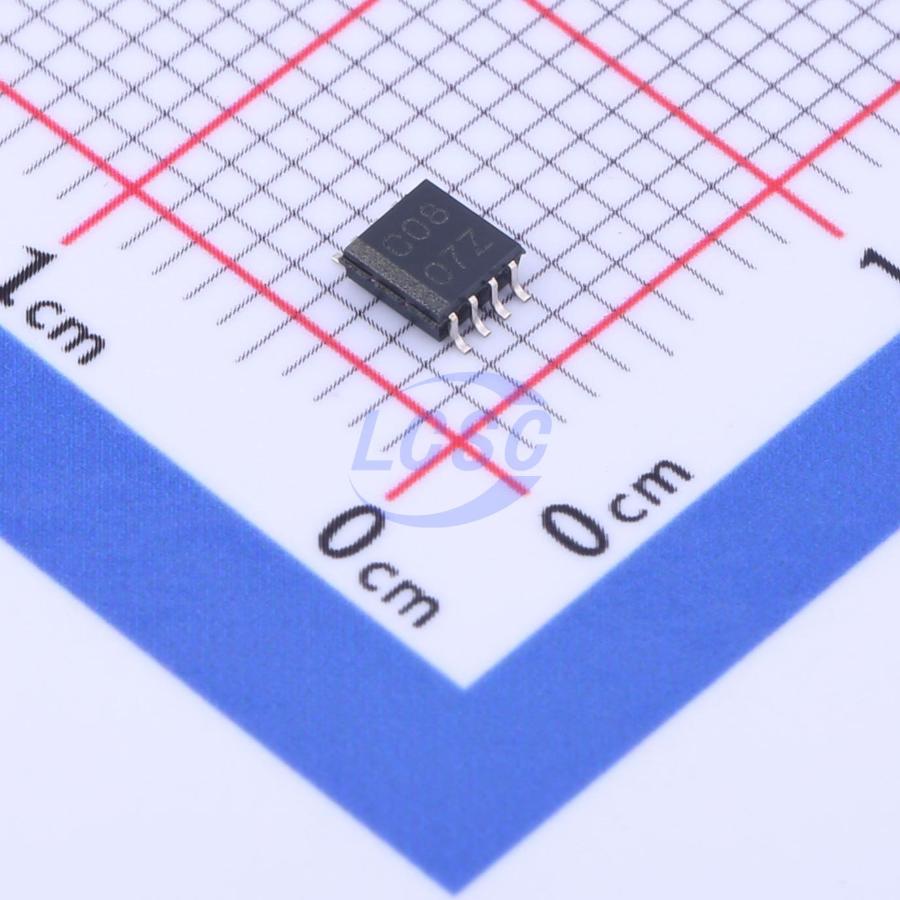

SN74LVC2G08DCTR

This dual 2 - input positive - AND gate is designed for 1.65 - V to 5.5 V VCC operation. The SN74LVC2G08 device performs the Boolean function Y = A × B or Y = A + B in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• IP Phones: Wired and Wireless
• Optical Networking: EPON and Video Over Fiber
• Point - to - Point Microwave Backhaul
• Power: Telecom DC/DC Module: Analog
• Power: Telecom DC/DC Module: Digital
• Private Branch Exchange (PBX) Telecom Shelter: Power Distribution Unit (PDU)
• Vector Signal Analyzers and Generators
• Wireless Communications Testers
• Wireless Repeaters xDSL Modem/DSLAM

Key features

• Available in the Texas Instruments NanoStar and NanoFree Package
• Supports 5 - V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 4.7 ns at 3.3 V
• Low Power Consumption, 10 - μA Maximum ICC
• ±24 - mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Ioff Supports Live Insertion, Partial - Power - Down Mode, and Back - Drive Protection
• Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the VCC Level
• Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000 - V Human Body Model (A114 - A)
• 1000 - V Charged - Device Model (C101)
