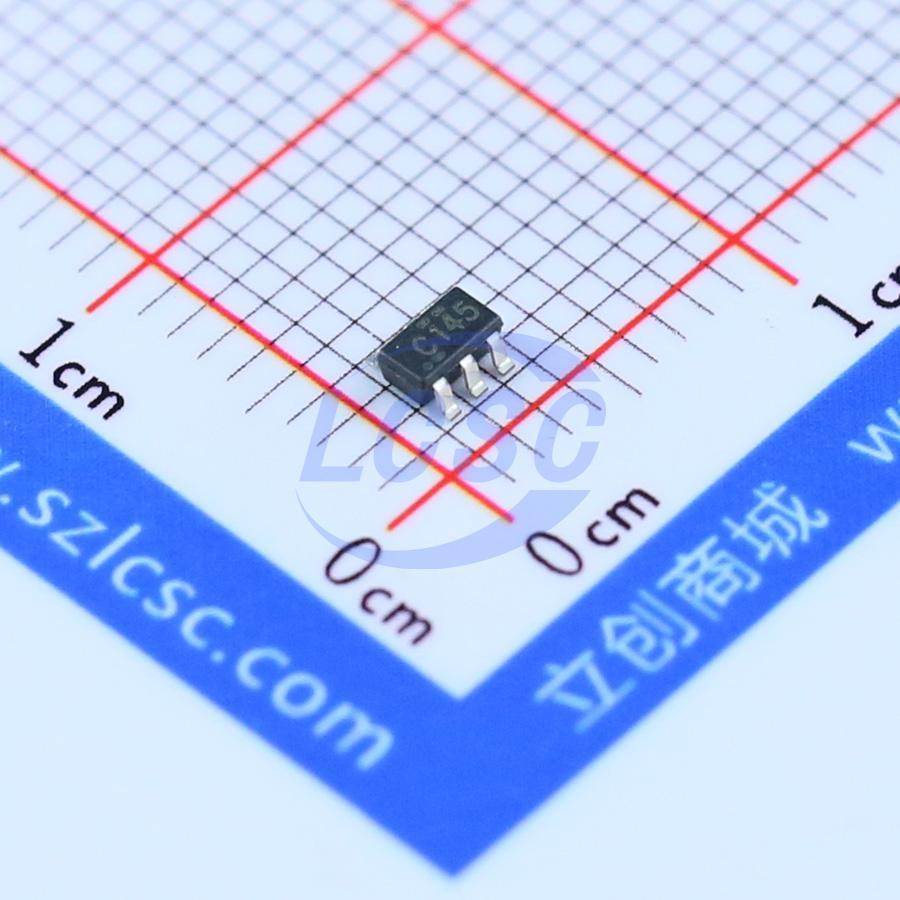

SN74LVC2G14DBVR

Schmitt trigger 1.65V~5.5V 4.7ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters RoHS

SOT-23-6ROHS3 CompliantActive

Dual Schmitt-Trigger Inverter

Manufacturer: TI
Manufacturer part #: SN74LVC2G14DBVR
Store part #: C12401
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

70 in stock

#C12401

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹28.37	₹141.85
50+	₹21.91	₹1,095.50
150+	₹18.75	₹2,812.50
500+	₹15.93	₹7,965.00
3,000+	₹15.16	₹45,480.00
6,000+	₹14.70	₹88,200.00

Quantity (min 5, multiples of 5)

5 × ₹28.37

₹141.85

excl. GST

₹167.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC2G14DBVR

₹141.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.7ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 300mV~1.4V
Input Logic Level - High: 1.4V~3.7V
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.057 g

Overview

This dual Schmitt-trigger inverter is designed for 1.65-V to 5.5 -V VCC operation. NanoFreeTM package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC2G14 contains two inverters and performs the Boolean function Y = A(overline). The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

Available in the Texas Instruments NanoFreeTM Package
Supports 5-V Vcc Operation
Inputs Accept Voltages to 5.5 V Max
Max tpd of 5.4 ns at 3.3V
Low Power Consumption, 10-μA Max Icc
±24-mA Output Drive at 3.3V
Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
Typical VOHV (Output VOH Undershoot) > 2V at VCC = 3.3V, TA = 25℃
Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
Support Translation Down (5V to 3.3V; 3.3V to 1.8V)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
AIP74LVC2G14GB236.TR#C3294720Wuxi I-core Elec · SOT-23-6	Wuxi I-core Elec	SOT-23-6	24,780	₹11.51 · 24,780 in stock	View
TP74LVC2G14S6#C42460205TECH PUBLIC · SOT-23-6	TECH PUBLIC	SOT-23-6	1,735	₹12.52 · 1,735 in stock	View
SN74LVC2G14DBVT#C470975TI · SOT-23-6	TI	SOT-23-6	On request	₹59.61 · 0 in stock	View
