SN74LVC3G14DCUR

Schmitt trigger 1.65V~5.5V 4.3ns@5V,50pF 10uA 3 VSSOP-8-0.5mm Gates and Inverters RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

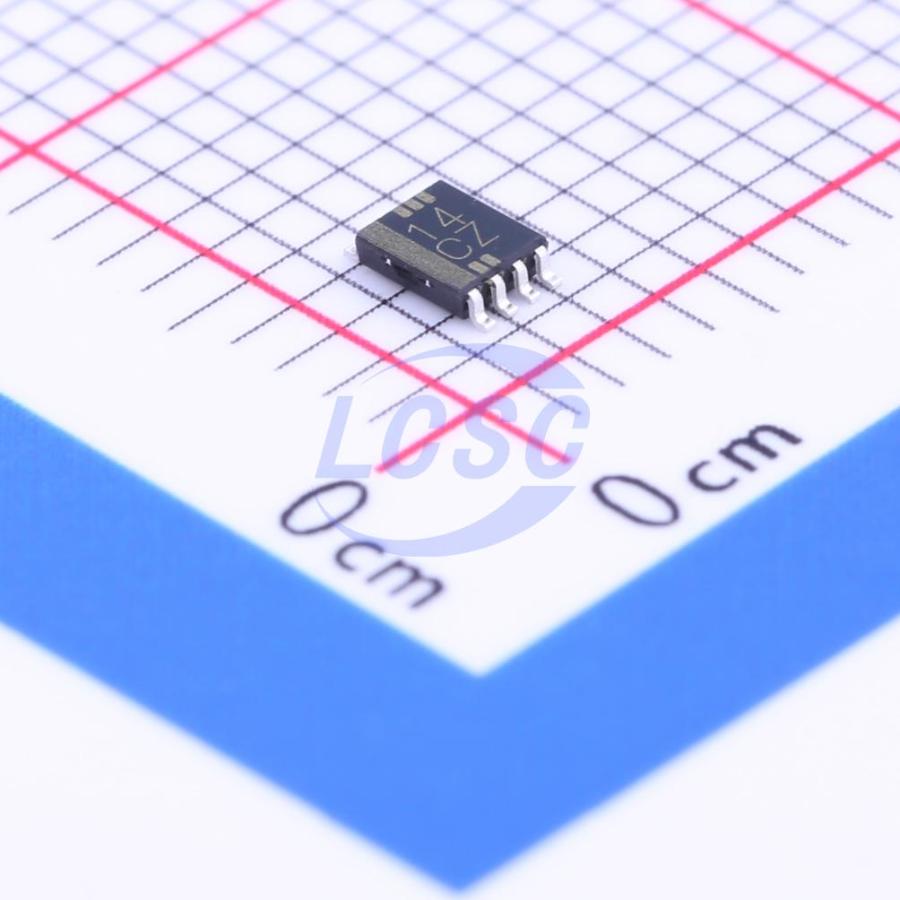

Triple Schmitt-Trigger Inverter

Manufacturer: TI
Manufacturer part #: SN74LVC3G14DCUR
Store part #: C98856
Package / case: VSSOP-8-0.5mm
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,420 in stock

#C98856

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹47.55	₹237.75
50+	₹37.48	₹1,874.00
150+	₹33.15	₹4,972.50
500+	₹27.77	₹13,885.00
3,000+	₹25.38	₹76,140.00
6,000+	₹23.93	₹1,43,580.00

Quantity (min 5, multiples of 5)

5 × ₹47.55

₹237.75

excl. GST

₹280.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC3G14DCUR

₹237.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 400mV~750mV
Propagation Delay: 4.3ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 300mV~1.4V
Input Logic Level - High: 1.4V~3.7V
Output Logic Level - High: 2.4V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 32mA
Number of Channels: 3
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

This triple Schmitt-trigger inverter is designed for 1.65-V to 5.5-V CC operation. The SN74LVC3G14 contains three inverters and performs the Boolean function Y = A(overline). The device functions as three independent inverters but, because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

Available in the NanoFree™ Package
Supports 5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 5.4 ns at 3.3 V
Low Power Consumption, 10 μA Max ICC
±24 mA Output Drive at 3.3 V
Typical VoLP (Output Ground Bounce) < 0.8 V at VCC = 3.3V, TA = 25℃
Typical V0HV (Output VoH Undershoot) > 2V at VCC = 3.3V, TA = 25℃
Ioff Feature Supports Live Insertion, Partial Power-Down Mode and Back Drive Protection
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
