VBsemi ElecDatasheet (PDF)

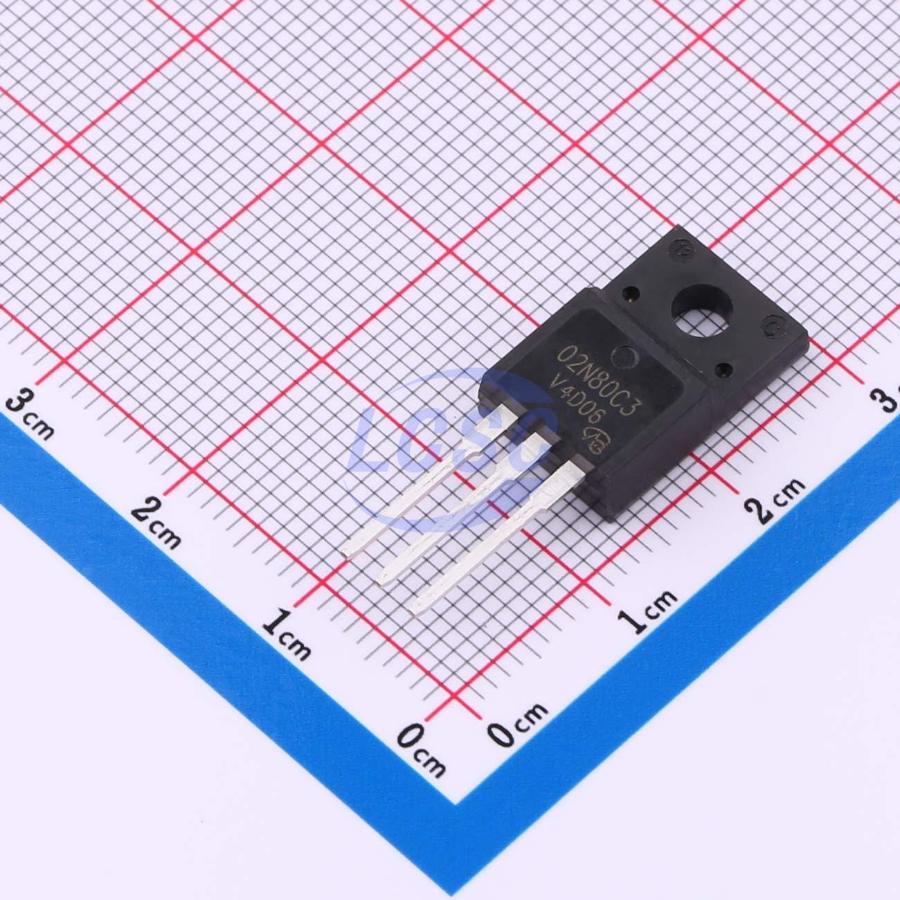

SPA02N80C3-VB
N-Channel 850V 5.5A 45W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 850V 5.5A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SPA02N80C3-VB
- Store part #
- C20755690
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C20755690
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.59 | ₹205.59 |
| 10+ | ₹172.65 | ₹1,726.50 |
| 50+ | ₹154.79 | ₹7,739.50 |
| 100+ | ₹134.34 | ₹13,434.00 |
| 500+ | ₹125.30 | ₹62,650.00 |
| 1,000+ | ₹121.20 | ₹1,21,200.00 |
1 × ₹205.59
₹205.59
excl. GST
₹242.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SPA02N80C3-VB
₹205.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 850V
- Output Capacitance(Coss)
- 68pF
- Current - Continuous Drain(Id)
- 5.5A
- Ciss-Input Capacitance
- 816pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 2.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.2 g
Overview
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
