VBsemi ElecDatasheet (PDF)

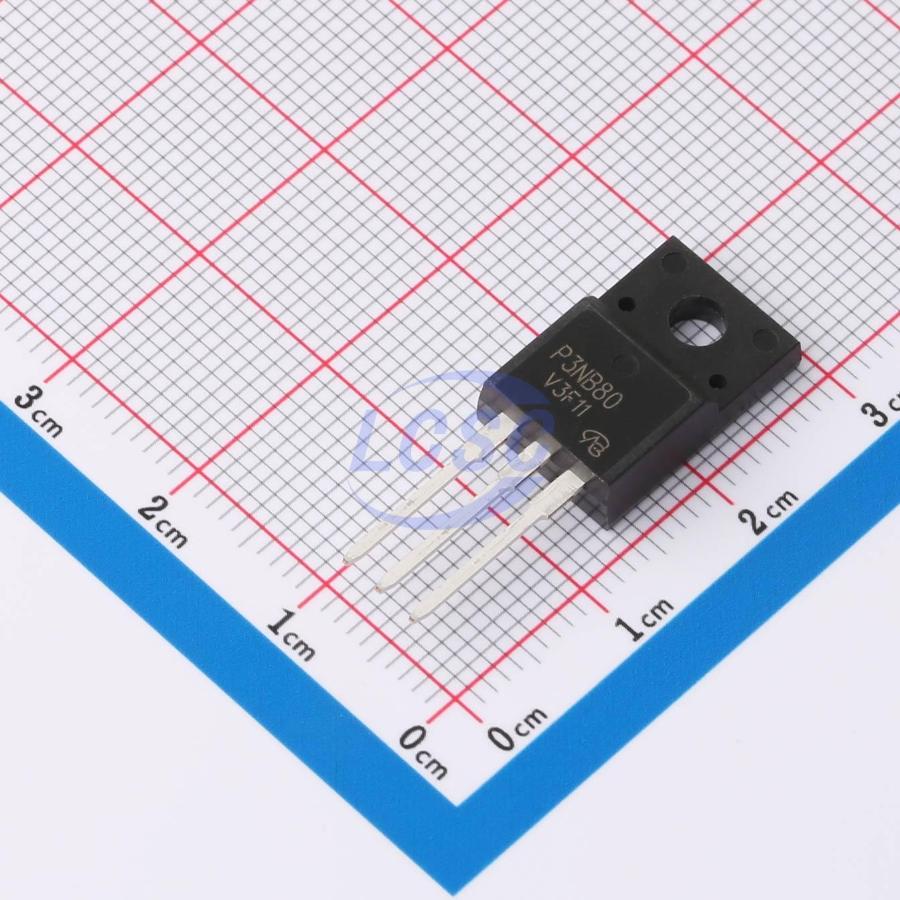

STP3NB80FP-VB
N-Channel 850V 5.5A 45W Through Hole TO-220F
TO-220FROHS CompliantActive
MOSFET N-CH 850V 5.5A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STP3NB80FP-VB
- Store part #
- C7525106
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7525106
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.14 | ₹200.14 |
| 10+ | ₹166.90 | ₹1,669.00 |
| 50+ | ₹148.85 | ₹7,442.50 |
| 100+ | ₹128.21 | ₹12,821.00 |
| 500+ | ₹119.08 | ₹59,540.00 |
| 1,000+ | ₹114.96 | ₹1,14,960.00 |
1 × ₹200.14
₹200.14
excl. GST
₹236.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STP3NB80FP-VB
₹200.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 850V
- Output Capacitance(Coss)
- 68pF
- Current - Continuous Drain(Id)
- 5.5A
- Ciss-Input Capacitance
- 816pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 2.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
