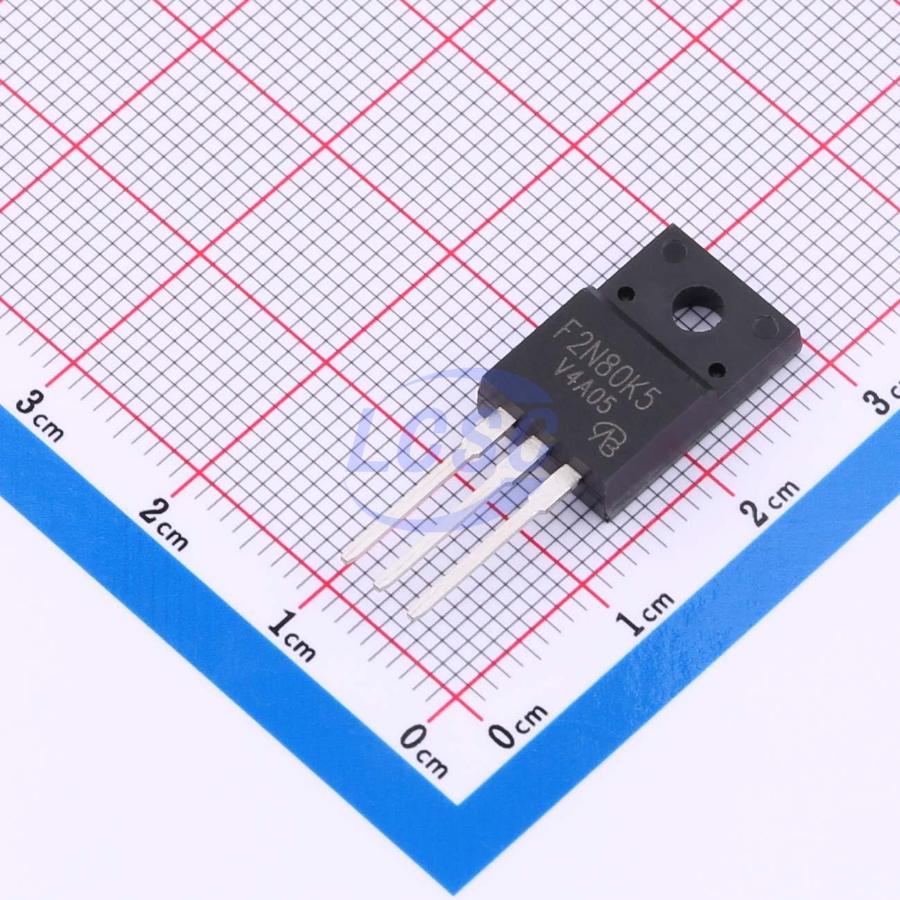

STF2N80K5-VB
N-Channel 850V 5.5A 45W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 850V 5.5A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STF2N80K5-VB
- Store part #
- C20626373
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C20626373
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹184.73 | ₹184.73 |
| 10+ | ₹152.90 | ₹1,529.00 |
| 50+ | ₹135.30 | ₹6,765.00 |
| 100+ | ₹115.41 | ₹11,541.00 |
| 500+ | ₹106.61 | ₹53,305.00 |
| 1,000+ | ₹102.64 | ₹1,02,640.00 |
1 × ₹184.73
₹184.73
excl. GST
₹217.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STF2N80K5-VB
₹184.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 850V
- Output Capacitance(Coss)
- 68pF
- Current - Continuous Drain(Id)
- 5.5A
- Ciss-Input Capacitance
- 816pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 2.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- Load switch
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPA02N80C3-VB#C20755690VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 46 | ₹205.59 · 46 in stock | View |
 | STP3NB80FP-VB#C7525106VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹200.14 · 50 in stock | View |
 | 2SK2632LS-VB#C7568968VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹195.72 · 10 in stock | View |
 | FQPF10N90C-VB#C22389723VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹446.99 · 4 in stock | View |
 | IPA95R450P7XKSA1-VB#C22395951VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 4 | ₹406.88 · 4 in stock | View |
