VISHAYDatasheet (PDF)

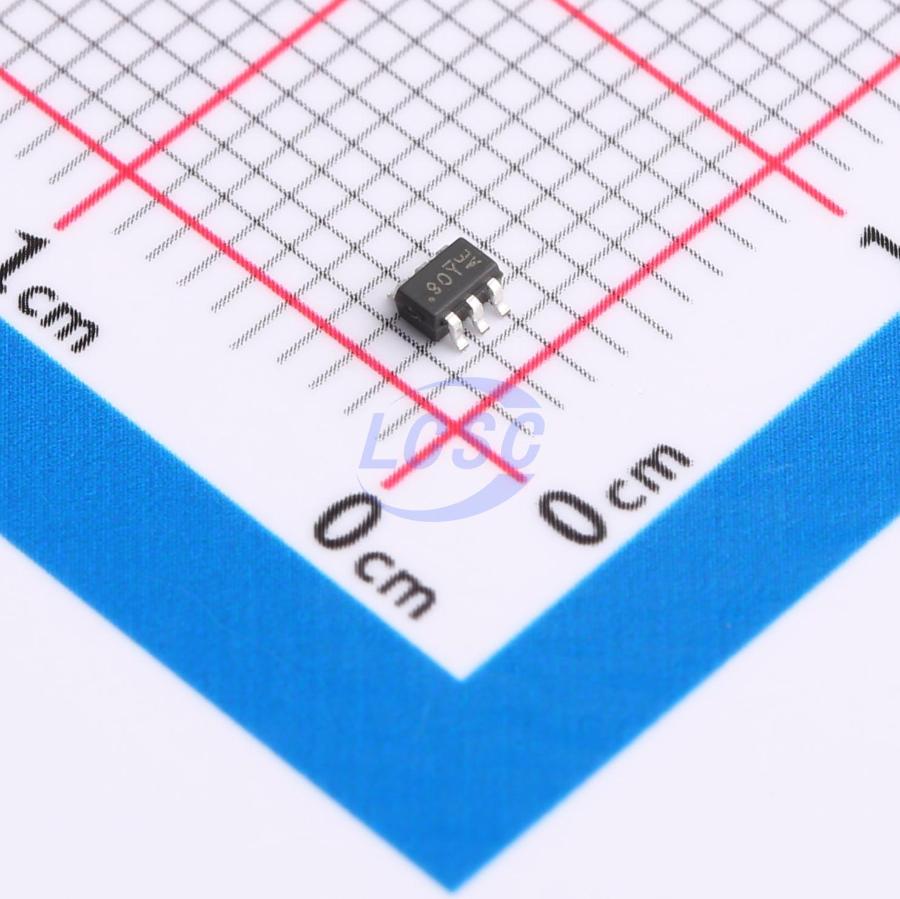

SQ1470AEH-T1_GE3
N-Channel 30V 1.7A 3.3W Surface Mount SC-70-6
SC-70-6ROHS3 CompliantActive
MOSFET N-CH 30V 1.7A SC-70-6
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ1470AEH-T1_GE3
- Store part #
- C727374
- Package / case
- SC-70-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,151 in stock
#C727374
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.51 | ₹44.51 |
| 10+ | ₹38.42 | ₹384.20 |
| 30+ | ₹35.81 | ₹1,074.30 |
| 100+ | ₹32.78 | ₹3,278.00 |
| 500+ | ₹31.26 | ₹15,630.00 |
| 1,000+ | ₹30.39 | ₹30,390.00 |
1 × ₹44.51
₹44.51
excl. GST
₹52.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ1470AEH-T1_GE3
₹44.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 450pF
- Pd - Power Dissipation
- 3.3W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 1.7A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 65mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The new single 6-pin SC-70 package with a copper leadframe enables improved on-resistance values and enhanced thermal performance as compared to the existing 3-pin and 6-pin packages with Alloy 42 leadframes. These devices are intended for small to medium load applications where a miniaturized package is required. Devices in this package come in a range of on-resistance values, in n-channel and p-channel versions.
Applications
- small to medium load applications
Key features
- TrenchFET power MOSFET
- AEC-Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQA470EJ-T1_GE3#C727327VISHAY · SC-70-6L | VISHAY | SC-70-6L | On request | ₹30.43 · 0 in stock | View |
 | SQ1440EH-T1_GE3#C727320VISHAY · SOT-363 | VISHAY | SOT-363 | 378 | ₹77.94 · 378 in stock | View |
 | SI1416EDH-T1-GE3#C145287VISHAY · SOT-363 | VISHAY | SOT-363 | 5,500 | ₹54.35 · 5,500 in stock | View |
 | PMPB55XNEAX-VB#C52148649VBsemi Elec · SC-70-6L | VBsemi Elec | SC-70-6L | 10 | ₹95.14 · 10 in stock | View |
 | BUK6D38-30EX-VB#C52148785VBsemi Elec · SC-70-6L | VBsemi Elec | SC-70-6L | 10 | ₹95.14 · 10 in stock | View |
