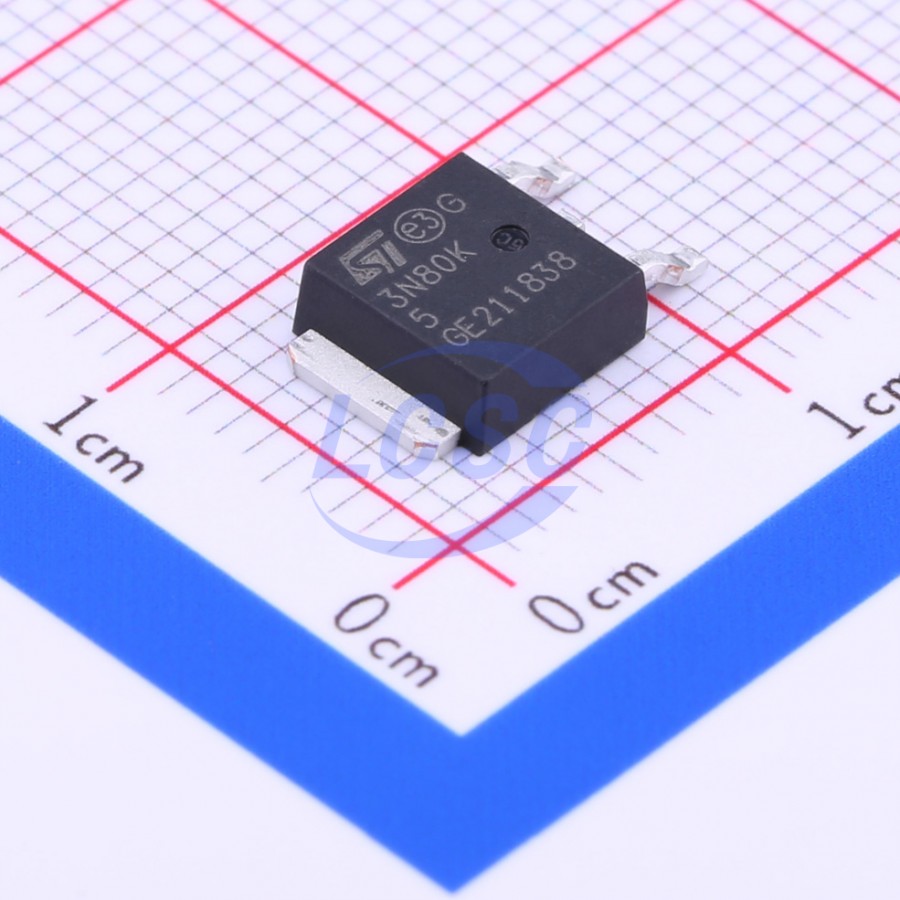

STD3N80K5
N-Channel 800V 2.5A 60W Surface Mount DPAK
DPAKROHS3 CompliantActive
MOSFET N-CH 800V 2.5A DPAK
- Manufacturer
- ST
- Manufacturer part #
- STD3N80K5
- Store part #
- C181036
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
267 in stock
#C181036
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.60 | ₹112.60 |
| 10+ | ₹90.16 | ₹901.60 |
| 30+ | ₹78.84 | ₹2,365.20 |
| 100+ | ₹67.74 | ₹6,774.00 |
| 500+ | ₹60.98 | ₹30,490.00 |
| 1,000+ | ₹57.50 | ₹57,500.00 |
1 × ₹112.60
₹112.60
excl. GST
₹132.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD3N80K5
₹112.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 14pF
- Ciss-Input Capacitance
- 130pF
- Pd - Power Dissipation
- 60W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 2.5A
- Reverse Transfer Capacitance (Crss)
- 0.6pF
- RDS(on)
- 3.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.5nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.
Applications
- Switching applications
Key features
- Industry’s lowest RDS(on) X area
- Industry’s best FoM (figure of merit)
- Ultra-low gate charge
- 100% avalanche tested
- Zener-protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD5N80K5#C2688621ST · DPAK | ST | DPAK | 90 | ₹476.09 · 90 in stock | View |
 | SL5N100D#C5375309Slkor · TO-252(DPAK) | Slkor | TO-252(DPAK) | 945 | ₹86.39 · 945 in stock | View |
 | STD4N80K5#C472540ST · TO-252(DPAK) | ST | TO-252(DPAK) | 73 | ₹238.75 · 73 in stock | View |
 | STD5N95K3#C2970512ST · DPAK | ST | DPAK | 2,234 | ₹332.51 · 2,234 in stock | View |
 | OSD4N80-OSEN#C55502967OSEN · TO-252 | OSEN | TO-252 | 200 | ₹36.81 · 200 in stock | View |
