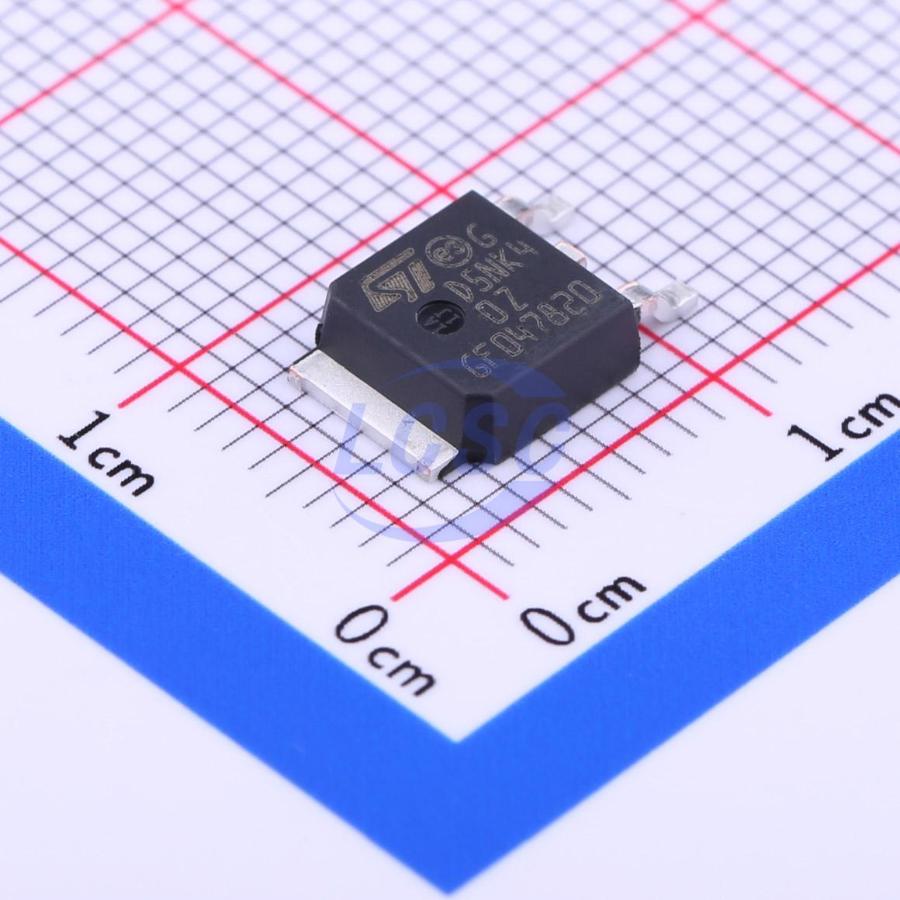

STD5NK40ZT4
400V 3A 45W 1.8Ω@10V 1 N-channel N-Channel DPAK Single FETs, MOSFETs RoHS
DPAKROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STD5NK40ZT4
- Store part #
- C262933
- Package / case
- DPAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52 in stock
#C262933
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.10 | ₹83.10 |
| 10+ | ₹68.56 | ₹685.60 |
| 30+ | ₹61.40 | ₹1,842.00 |
| 100+ | ₹54.24 | ₹5,424.00 |
| 500+ | ₹49.90 | ₹24,950.00 |
| 1,000+ | ₹47.73 | ₹47,730.00 |
1 × ₹83.10
₹83.10
excl. GST
₹98.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STD5NK40ZT4
₹83.10 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 3A
- Ciss-Input Capacitance
- 305pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 11.5pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
The SuperMESH™ series is derived from extreme optimization of ST's well-established strip-based PowerMESH™ layout. In addition to significantly reducing on-resistance, special emphasis has been placed on ensuring excellent dv/dt capability in the most demanding applications. This series completes ST's full lineup of high-voltage MOSFETs, which includes the innovative MDmesh™ products.
Applications
- High current, high-speed switching
- Ideal for off-line power supplies, adapters, and power factor correction (PFC)
- Lighting
Key features
- Extremely high dv/dt capability
- 100% avalanche tested
- Minimal gate charge
- Extremely low intrinsic capacitance
- Excellent manufacturing repeatability
