SilergyDatasheet (PDF)

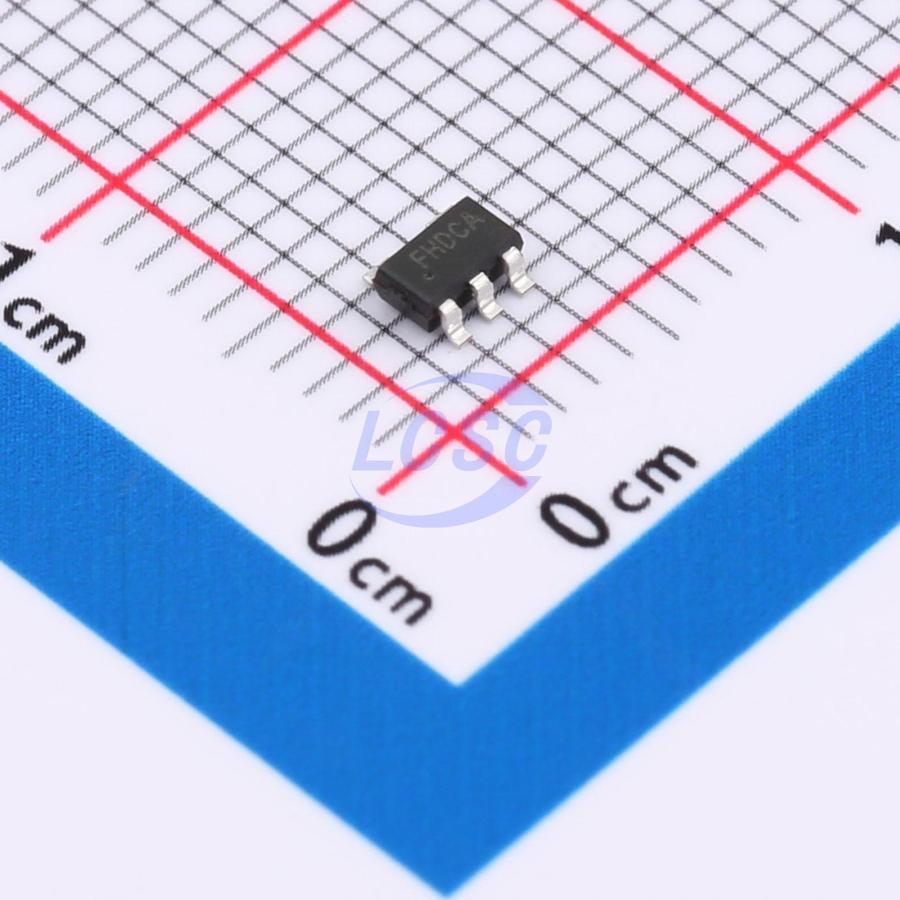

SY6281AAC
Load Switch 1 Channel 2A SOT-23-5
SOT-23-5RoHSActive
Low Loss Power Distribution Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6281AAC
- Store part #
- C2844078
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C2844078
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.55 | ₹187.75 |
| 50+ | ₹29.34 | ₹1,467.00 |
| 150+ | ₹25.84 | ₹3,876.00 |
| 500+ | ₹21.46 | ₹10,730.00 |
| 3,000+ | ₹19.50 | ₹58,500.00 |
| 6,000+ | ₹18.34 | ₹1,10,040.00 |
5 × ₹37.55
₹187.75
excl. GST
₹221.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6281AAC
₹187.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Under-voltage lockout
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 2A
- Operating Voltage
- 2.4V~5.5V
- RDS(on)
- 80mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Applications
- USB 3G Datacard
- USB Dongle MiniPCI Accessories
Key features
- The SY6281 develops ultra-low Rds(on) switch with programmable current limiting to protect the power source from over current and short circuit conditions.
- It integrates the over temperature protection and discharges the output capacitor during the shutdown.
- In case the output is pulled higher than the input voltage under the shutdown, the SY6281 can block the current flowing from the output to the input.
- Distribution voltages: 2.4V to 5.5V Programmable current limit
- Enable polarity: active low
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- At shutdown, OUT can be forced higher than IN
- Automatic output discharge at shutdown
- Compact SOT23 packages inimize the board space.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SY6288DAAC#C83700Silergy · SOT-23-5 | Silergy | SOT-23-5 | 1,245 | ₹33.88 · 1,245 in stock | View |
